HomeProductsFiltersFeed Through CapacitorsFN7510-10-M3

FN7510-10-M3

Schaffner EMC, Inc.Schaffner EMC, Inc.

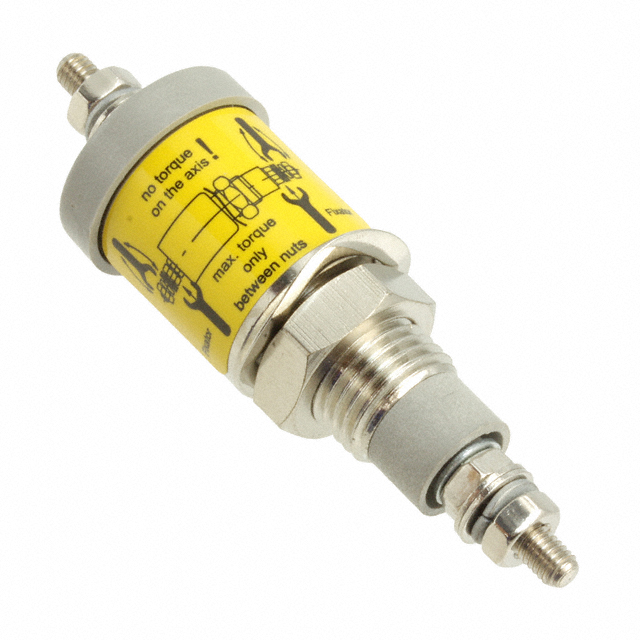

FN7510-10-M3 Image
Image may be representation. See specifications for product details.

Product Overview

Part Number: FN7510-10-M3
Manufacturer/Brand: Schaffner EMC, Inc.
Product description CAP FEEDTHRU 2200PF 1KV AXIAL
Datasheets: FN7510-10-M3.pdf
RoHs Status Lead free / RoHS Compliant
Stock Condition 1524 pcs stock
Ship From Hong Kong
Shipment Way DHL/Fedex/TNT/UPS/EMS
In Stock 1524 pcs
Reference Price (In US Dollars)
1 pcs
$19.409
10 pcs
$18.331
100 pcs
$14.827
Request Quote
Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]
  • Target Price:(USD)
  • Qty:
Total:$19.409

Please give us your target price if quantities greater than those displayed.

  • Part Number
  • Company Name
  • Contact Name
  • E-mail
  • Message

Specifications of FN7510-10-M3

Part Number FN7510-10-M3 Manufacturer Schaffner EMC, Inc.
Description CAP FEEDTHRU 2200PF 1KV AXIAL Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 1524 pcs Data sheet FN7510-10-M3.pdf
Voltage - Rated 1000V (1kV) Tolerance ±20%
Thread Size M10x1 Temperature Coefficient -
Size / Dimension 0.663" Dia x 2.244" L (16.85mm x 57.00mm) Series FN 751X
Ratings Y2 Packaging Tray
Package / Case Axial - Threaded Terminals Other Names 297-857
800022
817-1726
FN7510-10-M3-ND
FN751010M3
Operating Temperature -40°C ~ 100°C Moisture Sensitivity Level (MSL) 1 (Unlimited)
Manufacturer Standard Lead Time 10 Weeks Lead Free Status / RoHS Status Lead free / RoHS Compliant
Insertion Loss - Height (Max) -
Detailed Description 2200pF Feed Through Capacitor 1000V (1kV) 10A 0.8 mOhm (Typ) Axial - Threaded Terminals DC Resistance (DCR) (Max) 0.8 mOhm (Typ)
Current 10A Capacitance 2200pF
