Samtec, Inc.

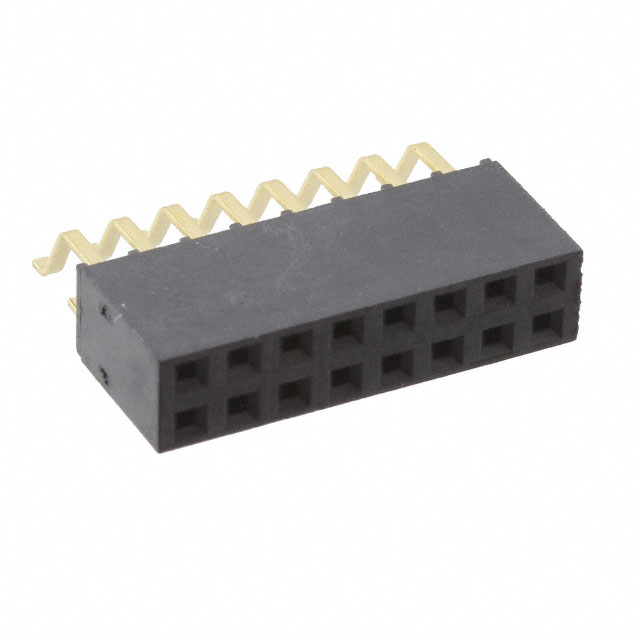

| Part Number | SMH-108-02-G-D | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | .100 C.L. HORIZONTAL SMT SOCKET | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 28070 pcs | Data sheet | 1.SMH-108-02-G-D.pdf2.SMH-108-02-G-D.pdf3.SMH-108-02-G-D.pdf4.SMH-108-02-G-D.pdf |
| Voltage Rating | - | Termination | Solder |
| Style | Board to Board | Series | SMH |
| Row Spacing - Mating | 0.100" (2.54mm) | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Tube | Other Names | SAM11816 SMH-108-02-G-D-ND |
| Operating Temperature | -55°C ~ 125°C | Number of Rows | 2 |
| Number of Positions Loaded | All | Number of Positions | 16 |
| Mounting Type | Surface Mount, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Liquid Crystal Polymer (LCP) |
| Insulation Height | 0.195" (4.95mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | 16 Position Receptacle Connector Surface Mount, Right Angle |
| Current Rating | - | Contact Type | Forked |
| Contact Shape | Square | Contact Material | Phosphor Bronze |
| Contact Length - Post | - | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | 20.0µin (0.51µm) | Contact Finish - Post | Tin |
| Contact Finish - Mating | Gold | Connector Type | Receptacle |
| Applications | - |
