Samtec, Inc.
| Part Number | SMH-106-02-T-D | Manufacturer | Samtec, Inc. |
|---|---|---|---|

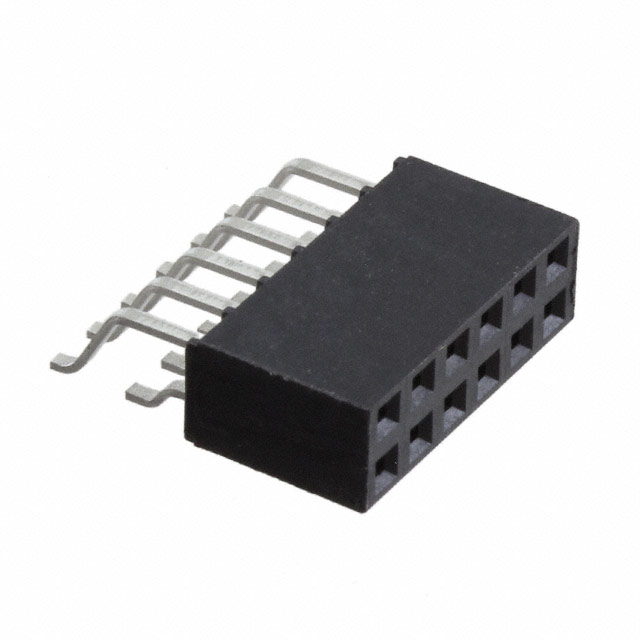

| Description | .100 C.L. HORIZONTAL SMT SOCKET | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 57417 pcs | Data sheet | 1.SMH-106-02-T-D.pdf2.SMH-106-02-T-D.pdf3.SMH-106-02-T-D.pdf4.SMH-106-02-T-D.pdf |
| Voltage Rating | - | Termination | Solder |
| Style | Board to Board | Series | SMH |
| Row Spacing - Mating | 0.100" (2.54mm) | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Tube | Other Names | SAM11815 SMH-106-02-T-D-ND |
| Operating Temperature | -55°C ~ 105°C | Number of Rows | 2 |
| Number of Positions Loaded | All | Number of Positions | 12 |
| Mounting Type | Surface Mount, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 3 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Liquid Crystal Polymer (LCP) | Insulation Height | 0.195" (4.95mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | - | Fastening Type | Push-Pull |
| Detailed Description | 12 Position Receptacle Connector Surface Mount, Right Angle | Current Rating | - |
| Contact Type | Forked | Contact Shape | Square |
| Contact Material | Phosphor Bronze | Contact Length - Post | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Receptacle | Applications | - |
