Samtec, Inc.
| Part Number | PTHF-130-03-M-Q-368 | Manufacturer | Samtec, Inc. |
|---|---|---|---|

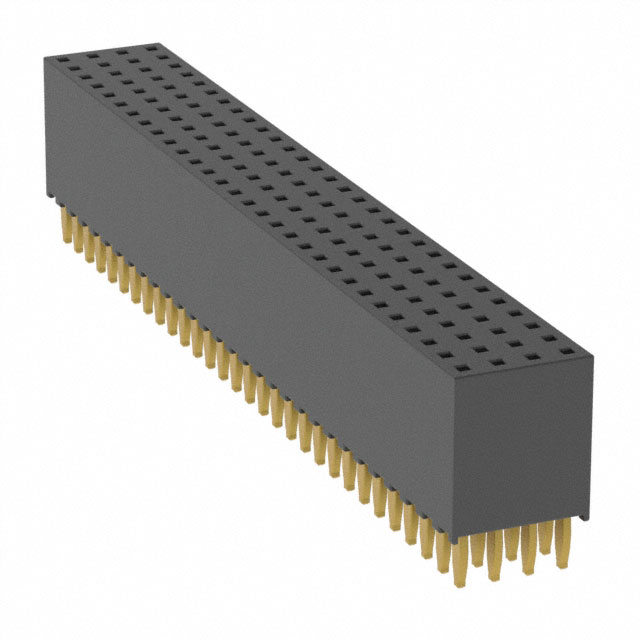

| Description | 2MM PC104+ COMPLIANT PIN SOCKET | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5484 pcs | Data sheet | 1.PTHF-130-03-M-Q-368.pdf2.PTHF-130-03-M-Q-368.pdf3.PTHF-130-03-M-Q-368.pdf |
| Voltage Rating | - | Termination | Press-Fit, Solder |
| Style | Board to Board | Series | PTHF |
| Row Spacing - Mating | 0.079" (2.00mm) | Pitch - Mating | 0.079" (2.00mm) |
| Packaging | Tube | Other Names | PTHF-130-03-M-Q-368-ND SAM10631 |
| Operating Temperature | -55°C ~ 125°C | Number of Rows | 4 |
| Number of Positions Loaded | All | Number of Positions | 120 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | - | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 3 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Liquid Crystal Polymer (LCP) | Insulation Height | 0.368" (9.35mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | - | Fastening Type | Push-Pull |
| Detailed Description | 120 Position Receptacle Connector 0.079" (2.00mm) Through Hole Gold | Current Rating | - |
| Contact Type | Forked | Contact Shape | Square |
| Contact Material | Phosphor Bronze | Contact Length - Post | 0.482" (12.24mm) |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | 20.0µin (0.51µm) |
| Contact Finish - Post | - | Contact Finish - Mating | Gold |
| Connector Type | Receptacle | Applications | - |
