Samtec, Inc.
| Part Number | PTHF-130-02-G-Q-368 | Manufacturer | Samtec, Inc. |
|---|---|---|---|

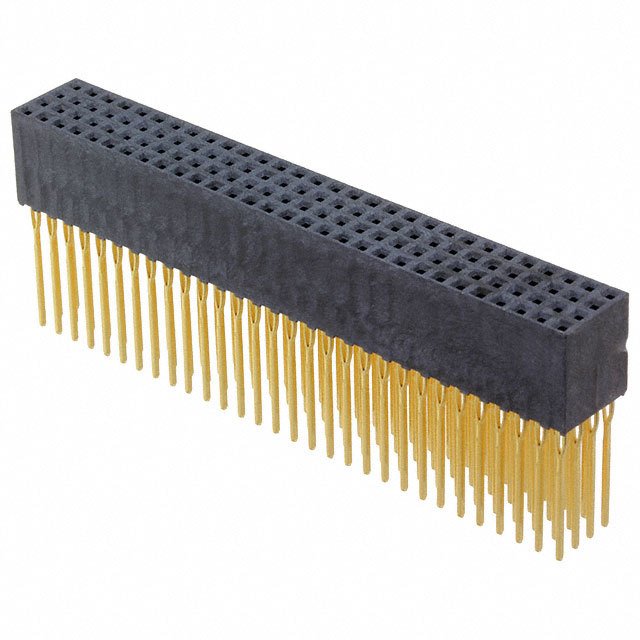

| Description | CONN SOCKET STRIP 120POS QUAD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 3809 pcs | Data sheet | 1.PTHF-130-02-G-Q-368.pdf2.PTHF-130-02-G-Q-368.pdf3.PTHF-130-02-G-Q-368.pdf |
| Voltage Rating | - | Termination | Press-Fit, Solder |
| Style | Board to Board | Series | PTHF |
| Row Spacing - Mating | 0.079" (2.00mm) | Pitch - Mating | 0.079" (2.00mm) |
| Packaging | Tube | Other Names | PTHF-130-02-G-Q-368-ND SAM10630 |
| Operating Temperature | -55°C ~ 125°C | Number of Rows | 4 |
| Number of Positions Loaded | All | Number of Positions | 120 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | - | Mated Stacking Heights | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Liquid Crystal Polymer (LCP) |
| Insulation Height | 0.368" (9.35mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | 120 Position Receptacle Connector 0.079" (2.00mm) Through Hole Gold |
| Current Rating | - | Contact Type | Forked |
| Contact Shape | Square | Contact Material | Phosphor Bronze |
| Contact Length - Post | 0.482" (12.24mm) | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | 15.0µin (0.38µm) | Contact Finish - Post | - |
| Contact Finish - Mating | Gold | Connector Type | Receptacle |
| Applications | - |
