MPTC-02-24-02-6.30-01-L-V-LC

Samtec, Inc.

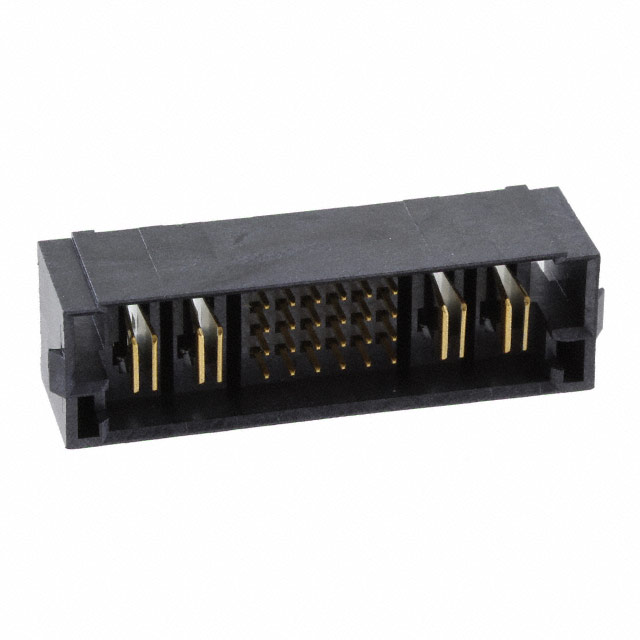

Image may be representation. See specifications for product details.

Product Overview

Part Number:	MPTC-02-24-02-6.30-01-L-V-LC
Manufacturer/Brand:	Samtec, Inc.
Product description	POWER TERMINAL
Datasheets:	1.MPTC-02-24-02-6.30-01-L-V-LC.pdf 2.MPTC-02-24-02-6.30-01-L-V-LC.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	13332 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 13332 pcs

Reference Price (In US Dollars)

1 pcs: $2.507

10 pcs: $2.401

100 pcs: $1.984

500 pcs: $1.67

1000 pcs: $1.462

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$2.507

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of MPTC-02-24-02-6.30-01-L-V-LC

Part Number	MPTC-02-24-02-6.30-01-L-V-LC	Manufacturer	Samtec, Inc.
Description	POWER TERMINAL	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	13332 pcs	Data sheet	1.MPTC-02-24-02-6.30-01-L-V-LC.pdf 2.MPTC-02-24-02-6.30-01-L-V-LC.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Board	Shrouding	Shrouded - 4 Wall
Series	Power Strip 30™ MPTC	Row Spacing - Mating	-
Pitch - Mating	-	Packaging	Tray
Overall Contact Length	-	Other Names	MPTC-02-24-02-6.30-01-L-V-LC-ND SAM11544
Operating Temperature	-55°C ~ 125°C	Number of Rows	4
Number of Positions Loaded	All	Number of Positions	28 (24 + 4 Power)
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	14mm
Manufacturer Standard Lead Time	3 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Liquid Crystal Polymer (LCP)	Insulation Height	0.448" (11.38mm)
Insulation Color	Black	Ingress Protection	-
Features	Board Lock	Fastening Type	Locking Ramp
Detailed Description	Connector Header Through Hole 28 (24 + 4 Power) position	Current Rating	-
Contact Type	Male Blade; Male Pin	Contact Shape	-
Contact Material	-	Contact Length - Post	0.107" (2.71mm)
Contact Length - Mating	-	Contact Finish Thickness - Post	-
Contact Finish Thickness - Mating	10.0µin (0.25µm)	Contact Finish - Post	Tin
Contact Finish - Mating	Gold	Connector Type	Header
Applications	-
