MPTC-02-24-02-01-01-L-RA-SD

Samtec, Inc.Samtec, Inc.

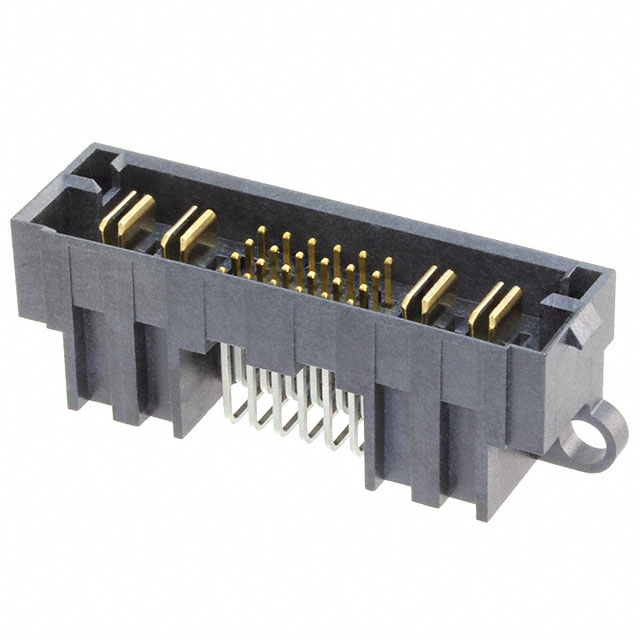

MPTC-02-24-02-01-01-L-RA-SD Image
Image may be representation. See specifications for product details.

Product Overview

Part Number: MPTC-02-24-02-01-01-L-RA-SD
Manufacturer/Brand: Samtec, Inc.
Product description HDR 4PWR 24SIG R/A CONN
Datasheets: 1.MPTC-02-24-02-01-01-L-RA-SD.pdf2.MPTC-02-24-02-01-01-L-RA-SD.pdf
RoHs Status Lead free / RoHS Compliant
Stock Condition 10970 pcs stock
Ship From Hong Kong
Shipment Way DHL/Fedex/TNT/UPS/EMS
In Stock 10970 pcs
Reference Price (In US Dollars)
1 pcs
$2.81
10 pcs
$2.692
100 pcs
$2.224
500 pcs
$1.873
1000 pcs
$1.639
Request Quote
Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]
  • Target Price:(USD)
  • Qty:
Total:$2.81

Please give us your target price if quantities greater than those displayed.

  • Part Number
  • Company Name
  • Contact Name
  • E-mail
  • Message

Specifications of MPTC-02-24-02-01-01-L-RA-SD

Part Number MPTC-02-24-02-01-01-L-RA-SD Manufacturer Samtec, Inc.
Description HDR 4PWR 24SIG R/A CONN Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 10970 pcs Data sheet 1.MPTC-02-24-02-01-01-L-RA-SD.pdf2.MPTC-02-24-02-01-01-L-RA-SD.pdf
Voltage Rating - Termination Solder
Style Board to Board Shrouding Shrouded - 4 Wall
Series Power Strip 30™ MPTC Row Spacing - Mating -
Pitch - Mating - Packaging Tray
Overall Contact Length - Other Names MPTC-02-24-02-01-01-L-RA-SD-ND
Q9886939
SAM10622
Operating Temperature -55°C ~ 105°C Number of Rows 4
Number of Positions Loaded All Number of Positions 28 (24 + 4 Power)
Mounting Type Through Hole, Right Angle Moisture Sensitivity Level (MSL) 1 (Unlimited)
Material Flammability Rating UL94 V-0 Mated Stacking Heights -
Manufacturer Standard Lead Time 3 Weeks Lead Free Status / RoHS Status Lead free / RoHS Compliant
Insulation Material Liquid Crystal Polymer (LCP) Insulation Height 0.490" (12.44mm)
Insulation Color Black Ingress Protection -
Features Mounting Flange Fastening Type Locking Ramp
Detailed Description Connector Header Through Hole, Right Angle 28 (24 + 4 Power) position Current Rating -
Contact Type Male Blade; Male Pin Contact Shape -
Contact Material - Contact Length - Post 0.107" (2.71mm)
Contact Length - Mating - Contact Finish Thickness - Post -
Contact Finish Thickness - Mating 10.0µin (0.25µm) Contact Finish - Post Tin
Contact Finish - Mating Gold Connector Type Header
Applications -
