STB5NK50Z-1

STMicroelectronics

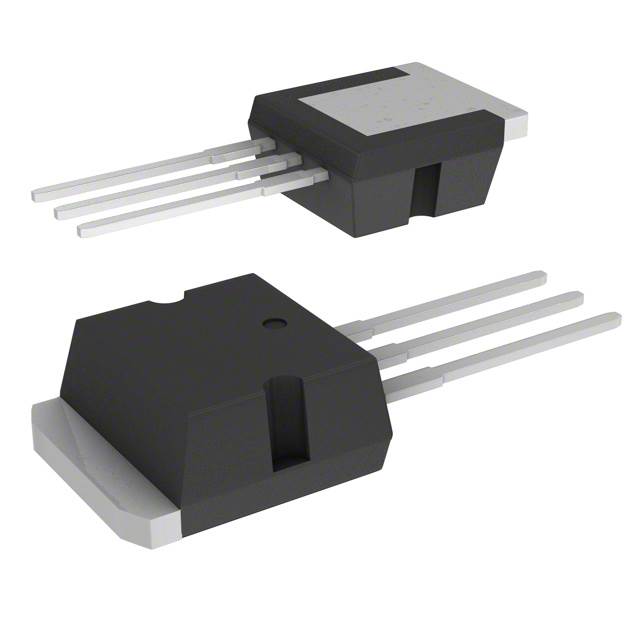

Image may be representation. See specifications for product details.

Product Overview

Part Number:	STB5NK50Z-1
Manufacturer/Brand:	STMicroelectronics
Product description	MOSFET N-CH 500V 4.4A I2PAK
Datasheets:	STB5NK50Z-1.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	161741 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 161741 pcs

Reference Price (In US Dollars)

2000 pcs: $0.238

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$0.238

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of STB5NK50Z-1

Part Number	STB5NK50Z-1	Manufacturer	STMicroelectronics
Description	MOSFET N-CH 500V 4.4A I2PAK	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	161741 pcs	Data sheet	STB5NK50Z-1.pdf
Vgs(th) (Max) @ Id	4.5V @ 50µA	Vgs (Max)	±30V
Technology	MOSFET (Metal Oxide)	Supplier Device Package	I-PAK
Series	SuperMESH™	Rds On (Max) @ Id, Vgs	1.5 Ohm @ 2.2A, 10V
Power Dissipation (Max)	70W (Tc)	Packaging	Tube
Package / Case	TO-262-3 Long Leads, I²Pak, TO-262AA	Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Input Capacitance (Ciss) (Max) @ Vds	535pF @ 25V
Gate Charge (Qg) (Max) @ Vgs	28nC @ 10V	FET Type	N-Channel
FET Feature	-	Drive Voltage (Max Rds On, Min Rds On)	10V
Drain to Source Voltage (Vdss)	500V	Detailed Description	N-Channel 500V 4.4A (Tc) 70W (Tc) Through Hole I-PAK
Current - Continuous Drain (Id) @ 25°C	4.4A (Tc)
