STB5N80K5

STMicroelectronics

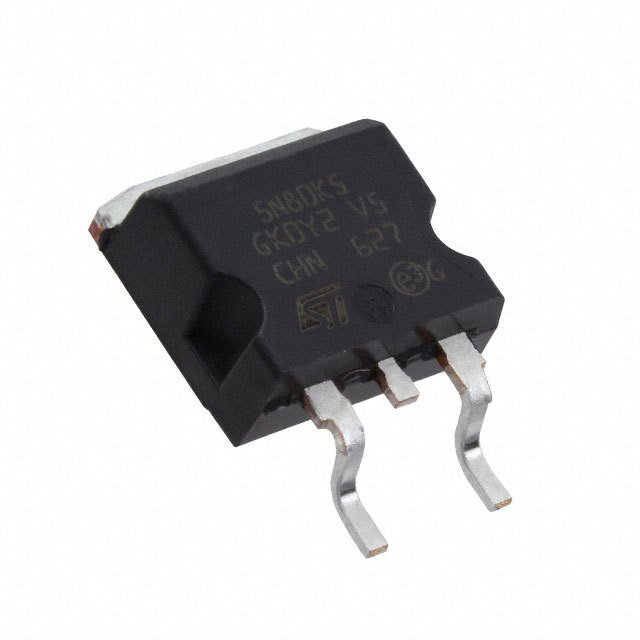

Image may be representation. See specifications for product details.

Product Overview

Part Number:	STB5N80K5
Manufacturer/Brand:	STMicroelectronics
Product description	N-CHANNEL 800 V, 1.50 OHM TYP.,
Datasheets:	1.STB5N80K5.pdf 2.STB5N80K5.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	45925 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 45925 pcs

Reference Price (In US Dollars)

1 pcs: $0.73

10 pcs: $0.659

100 pcs: $0.53

500 pcs: $0.412

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.73

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of STB5N80K5

Part Number	STB5N80K5	Manufacturer	STMicroelectronics
Description	N-CHANNEL 800 V, 1.50 OHM TYP.,	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	45925 pcs	Data sheet	1.STB5N80K5.pdf 2.STB5N80K5.pdf
Vgs(th) (Max) @ Id	5V @ 100µA	Vgs (Max)	±30V
Technology	MOSFET (Metal Oxide)	Supplier Device Package	D2PAK
Series	MDmesh™	Rds On (Max) @ Id, Vgs	1.75 Ohm @ 2A, 10V
Power Dissipation (Max)	60W (Tc)	Packaging	Cut Tape (CT)
Package / Case	TO-263-3, D²Pak (2 Leads + Tab), TO-263AB	Other Names	497-16923-1
Operating Temperature	-55°C ~ 150°C (TJ)	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	42 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Input Capacitance (Ciss) (Max) @ Vds	177pF @ 100V
Gate Charge (Qg) (Max) @ Vgs	5nC @ 10V	FET Type	N-Channel
FET Feature	-	Drive Voltage (Max Rds On, Min Rds On)	10V
Drain to Source Voltage (Vdss)	800V	Detailed Description	N-Channel 800V 4A (Tc) 60W (Tc) Surface Mount D2PAK
Current - Continuous Drain (Id) @ 25°C	4A (Tc)
