ESDLIN1524BJ

STMicroelectronicsSTMicroelectronics

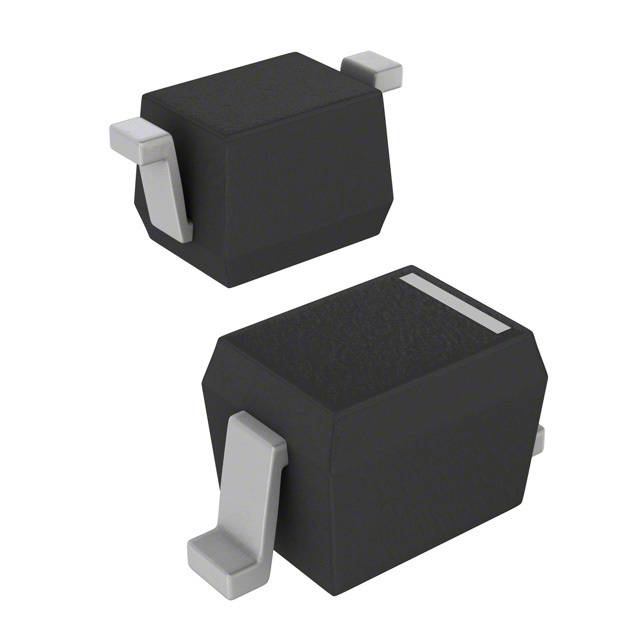

ESDLIN1524BJ Image
Image may be representation. See specifications for product details.

Product Overview

Part Number: ESDLIN1524BJ
Manufacturer/Brand: STMicroelectronics
Product description TVS DIODE 15V/24V 35V/50V SOD323
Datasheets: ESDLIN1524BJ.pdf
RoHs Status Lead free / RoHS Compliant
Stock Condition 229002 pcs stock
Ship From Hong Kong
Shipment Way DHL/Fedex/TNT/UPS/EMS
In Stock 229002 pcs
Reference Price (In US Dollars)
1 pcs
$0.166
10 pcs
$0.126
100 pcs
$0.078
500 pcs
$0.054
1000 pcs
$0.041
Request Quote
Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]
  • Target Price:
  • Qty:
Total:$0.166

Please give us your target price if quantities greater than those displayed.

  • Part Number
  • Company Name
  • Contact Name
  • E-mail
  • Message

Specifications of ESDLIN1524BJ

Part Number ESDLIN1524BJ Manufacturer STMicroelectronics
Description TVS DIODE 15V/24V 35V/50V SOD323 Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 229002 pcs Data sheet ESDLIN1524BJ.pdf
Voltage - Reverse Standoff (Typ) 15V, 24V Voltage - Clamping (Max) @ Ipp 35V, 50V
Voltage - Breakdown (Min) 17.1V, 25.4V Type Zener
Supplier Device Package SOD-323 Series Automotive, AEC-Q101, TRANSIL™
Power Line Protection No Power - Peak Pulse 160W
Packaging Original-Reel® Package / Case SC-76, SOD-323
Other Names 497-7751-6 Operating Temperature -40°C ~ 150°C (TJ)
Mounting Type Surface Mount Moisture Sensitivity Level (MSL) 1 (Unlimited)
Manufacturer Standard Lead Time 11 Weeks Lead Free Status / RoHS Status Lead free / RoHS Compliant
Current - Peak Pulse (10/1000µs) 5A, 3A (8/20µs) Capacitance @ Frequency 16pF @ 1MHz
Bidirectional Channels 1 Base Part Number ESDLIN1524
Applications Automotive
