ESDLC5V0PB8-TP

Micro Commercial Components (MCC)

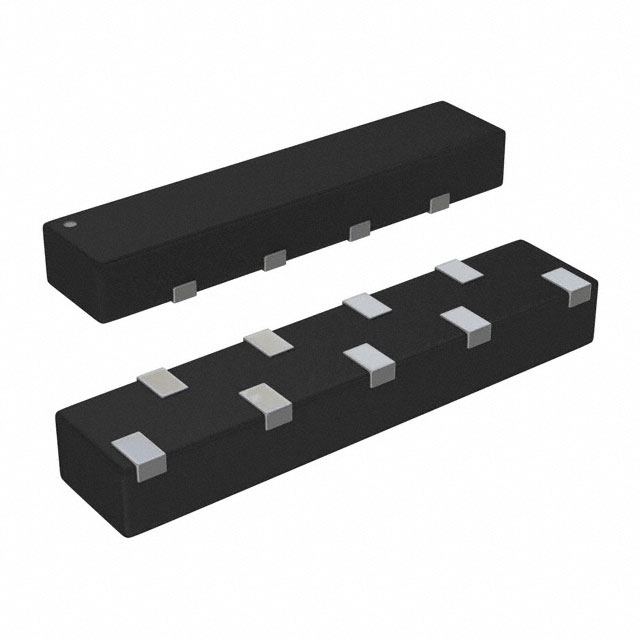

Image may be representation. See specifications for product details.

Product Overview

Part Number:	ESDLC5V0PB8-TP
Manufacturer/Brand:	Micro Commercial Components (MCC)
Product description	TVS DIODE 5V 20V DFN3810-9
Datasheets:	ESDLC5V0PB8-TP.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	160736 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 160736 pcs

Reference Price (In US Dollars)

1 pcs: $0.238

10 pcs: $0.20

25 pcs: $0.175

100 pcs: $0.15

250 pcs: $0.13

500 pcs: $0.11

1000 pcs: $0.085

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.238

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of ESDLC5V0PB8-TP

Part Number	ESDLC5V0PB8-TP	Manufacturer	Micro Commercial Components (MCC)
Description	TVS DIODE 5V 20V DFN3810-9	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	160736 pcs	Data sheet	ESDLC5V0PB8-TP.pdf
Voltage - Reverse Standoff (Typ)	5V (Max)	Voltage - Clamping (Max) @ Ipp	20V
Voltage - Breakdown (Min)	6V	Unidirectional Channels	8
Type	Steering (Rail to Rail)	Supplier Device Package	DFN3810-9
Series	-	Power Line Protection	Yes
Power - Peak Pulse	100W	Packaging	Original-Reel®
Package / Case	9-UDFN	Other Names	ESDLC5V0PB8-TPMSDKR
Operating Temperature	-55°C ~ 125°C (TJ)	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	18 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Current - Peak Pulse (10/1000µs)	5A (8/20µs)
Capacitance @ Frequency	0.29pF @ 1MHz	Applications	General Purpose
