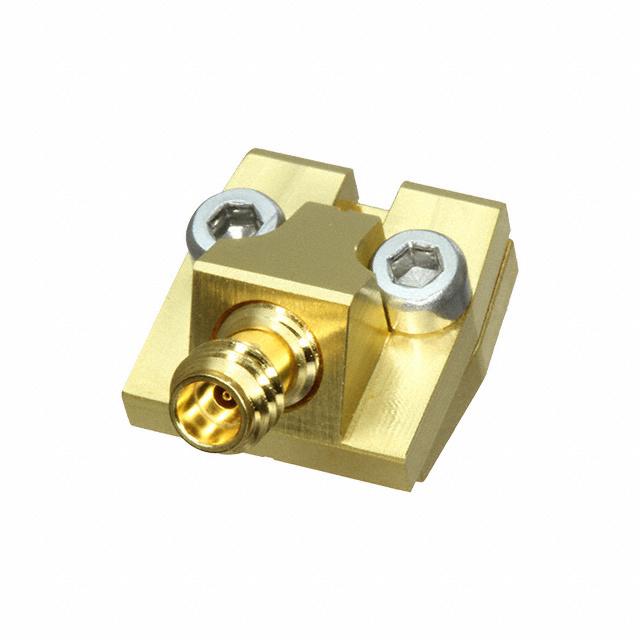

Rosenberger
| Part Number | 01K80A-40ML5 | Manufacturer | Rosenberger |
|---|---|---|---|
| Description | CONN RPC1.00 JACK RA 50OHM SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 112 pcs | Data sheet | 01K80A-40ML5.pdf |
| Voltage Rating | 150V | Shield Termination | Screw |
| Series | RPC | Packaging | - |
| Other Names | 1868-1001 276705 |
Operating Temperature | -40°C ~ 85°C |
| Number of Ports | 1 | Mounting Type | Surface Mount, Right Angle |
| Mounting Feature | - | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mating Cycles | 500 | Manufacturer Standard Lead Time | 12 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insertion Loss | - |
| Ingress Protection | - | Includes | 3 pcs - 1 Connector, 2 Screws |
| Impedance | 50 Ohm | Housing Color | Gold |
| Frequency - Max | 110GHz | Features | Mounting Hardware |
| Fastening Type | Threaded | Dielectric Material | Polyetheretherketone (PEEK) |
| Detailed Description | 1.0mm Connector Jack, Female Socket 50 Ohm Surface Mount, Right Angle Solder | Contact Termination | Solder |
| Connector Type | Jack, Female Socket | Connector Style | 1.0mm |
| Center Contact Plating | Gold | Center Contact Material | Beryllium Copper |
| Cable Group | - | Body Material | Beryllium Copper |
| Body Finish | Gold |
