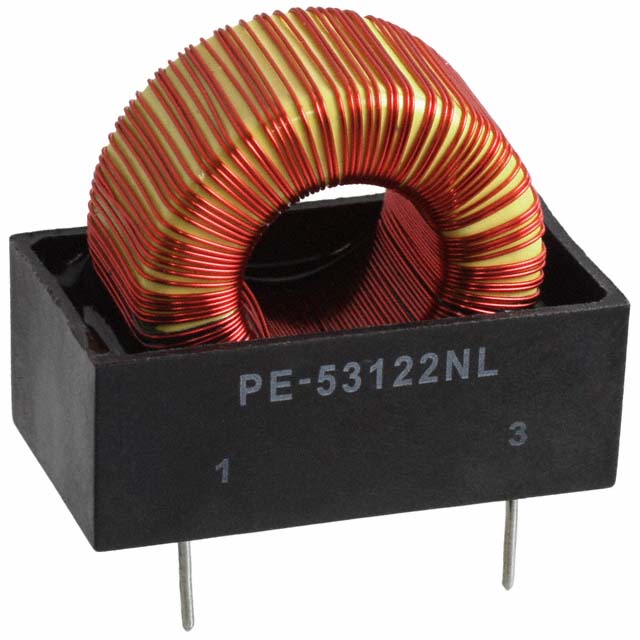

PE-53122NL

Pulse Electronics Corporation

Image may be representation. See specifications for product details.

Product Overview

Part Number:	PE-53122NL
Manufacturer/Brand:	Pulse Electronics Corporation
Product description	FIXED IND 2.2MH 420MA 1.8 OHM TH
Datasheets:	PE-53122NL.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	15974 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 15974 pcs

Reference Price (In US Dollars)

1 pcs: $1.983

25 pcs: $1.653

100 pcs: $1.19

500 pcs: $1.058

1000 pcs: $0.992

2500 pcs: $0.959

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$1.983

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of PE-53122NL

Part Number	PE-53122NL	Manufacturer	Pulse Electronics Corporation
Description	FIXED IND 2.2MH 420MA 1.8 OHM TH	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	15974 pcs	Data sheet	PE-53122NL.pdf
Type	Toroidal	Tolerance	±20%
Supplier Device Package	-	Size / Dimension	1.440" L x 0.800" W (36.57mm x 20.32mm)
Shielding	Unshielded	Series	-
Ratings	-	Q @ Freq	-
Packaging	Tube	Package / Case	Radial
Other Names	553-1811-5 PE-53122NL-ND PE53122NL	Operating Temperature	-40°C ~ 130°C
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material - Core	-	Manufacturer Standard Lead Time	13 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Inductance	2.2mH
Height - Seated (Max)	1.440" (36.57mm)	Frequency - Self Resonant	-
Features	-	Detailed Description	2.2mH Unshielded Toroidal Inductor 420mA 1.8 Ohm Max Radial
DC Resistance (DCR)	1.8 Ohm Max	Current Rating	420mA
Current - Saturation	-
