PE-53120NL

Pulse Electronics Corporation

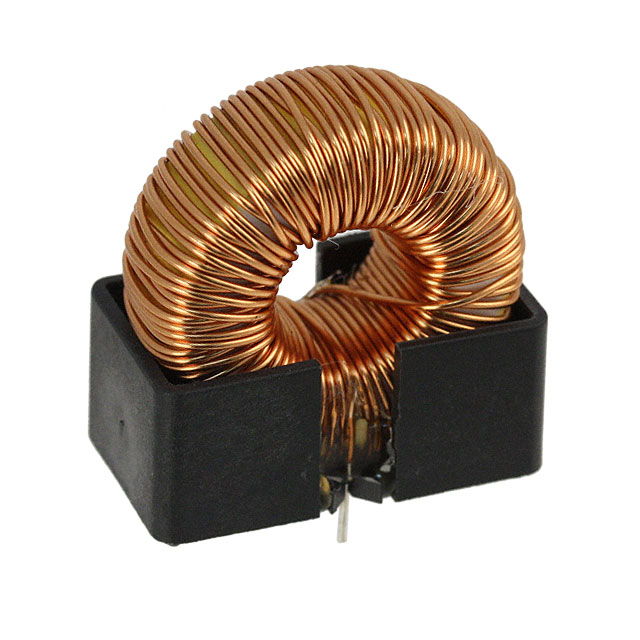

Image may be representation. See specifications for product details.

Product Overview

Part Number:	PE-53120NL
Manufacturer/Brand:	Pulse Electronics Corporation
Product description	FIXED IND 1MH 950MA 240 MOHM TH
Datasheets:	PE-53120NL.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	20307 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 20307 pcs

Reference Price (In US Dollars)

1 pcs: $1.766

35 pcs: $1.472

105 pcs: $1.06

525 pcs: $0.942

1015 pcs: $0.883

2520 pcs: $0.854

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.766

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of PE-53120NL

Part Number	PE-53120NL	Manufacturer	Pulse Electronics Corporation
Description	FIXED IND 1MH 950MA 240 MOHM TH	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	20307 pcs	Data sheet	PE-53120NL.pdf
Type	Toroidal	Tolerance	±20%
Supplier Device Package	-	Size / Dimension	1.300" L x 0.700" W (33.02mm x 17.78mm)
Shielding	Unshielded	Series	-
Ratings	-	Q @ Freq	-
Packaging	Tube	Package / Case	Radial
Other Names	553-1588-5 PE-53120NL-ND PE53120NL	Operating Temperature	-40°C ~ 130°C
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material - Core	-	Manufacturer Standard Lead Time	11 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Inductance	1mH
Height - Seated (Max)	1.400" (35.56mm)	Frequency - Self Resonant	-
Features	-	Detailed Description	1mH Unshielded Toroidal Inductor 950mA 240 mOhm Max Radial
DC Resistance (DCR)	240 mOhm Max	Current Rating	950mA
Current - Saturation	-
