PA3207NL

Pulse Electronics Corporation

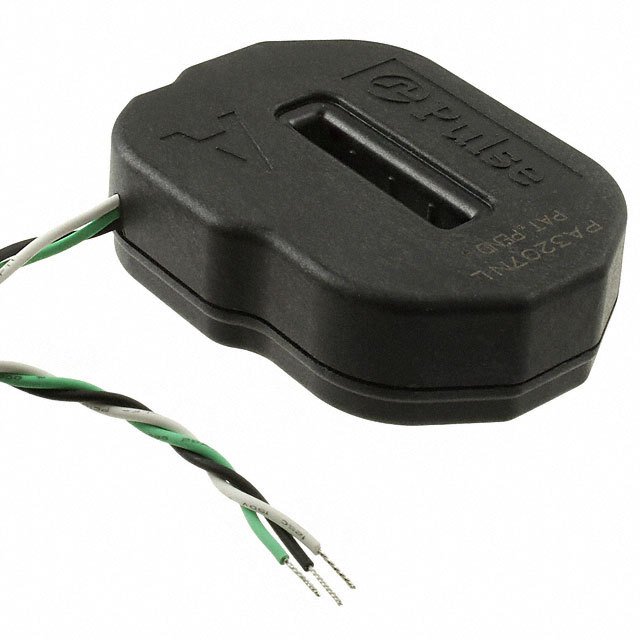

Image may be representation. See specifications for product details.

Product Overview

Part Number:	PA3207NL
Manufacturer/Brand:	Pulse Electronics Corporation
Product description	CURR SENSE XFMR ROGOWSKI 200A
Datasheets:	PA3207NL.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	11939 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 11939 pcs

Reference Price (In US Dollars)

1 pcs: $3.128

5 pcs: $2.745

20 pcs: $2.471

40 pcs: $2.196

60 pcs: $2.032

100 pcs: $1.757

500 pcs: $1.647

1000 pcs: $1.537

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$3.128

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of PA3207NL

Part Number	PA3207NL	Manufacturer	Pulse Electronics Corporation
Description	CURR SENSE XFMR ROGOWSKI 200A	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	11939 pcs	Data sheet	PA3207NL.pdf
Type	Non-Invasive (Solid Core)	Turns Ratio - Primary:Secondary	Rogowski Coil
Termination Style	Wire Leads	Size / Dimension	1.437" L x 1.913" W (36.50mm x 48.60mm)
Series	Sidewinder®, PA32XXNL	Ratings	-
Packaging	Tray	Other Names	553-2178
Mounting Type	Chassis Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	11 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Inductance	1.86mH	Height - Seated (Max)	0.559" (14.20mm)
Frequency Range	50/60Hz	Energy Time (E.T.)	-
Detailed Description	200A Rogowski Coil Current Sense Transformer 50/60Hz 66 Ohm Max 1.86mH Chassis Mount	DC Resistance (DCR)	66 Ohm Max
Current Ratio	-	Current Rating	200A
