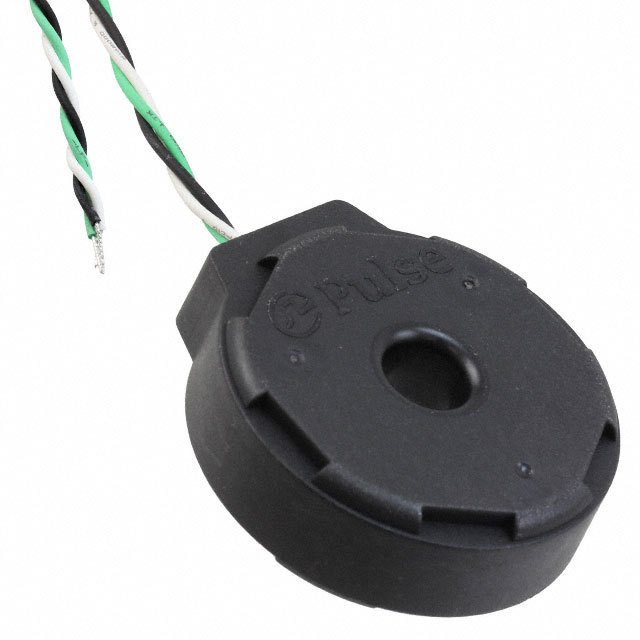

PA3202NL

Pulse Electronics Corporation

Image may be representation. See specifications for product details.

Product Overview

Part Number:	PA3202NL
Manufacturer/Brand:	Pulse Electronics Corporation
Product description	CURR SENSE XFMR ROGOWSKI 200A
Datasheets:	PA3202NL.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	14341 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 14341 pcs

Reference Price (In US Dollars)

1 pcs: $2.652

5 pcs: $2.341

10 pcs: $2.068

38 pcs: $1.678

76 pcs: $1.483

114 pcs: $1.444

532 pcs: $1.209

1026 pcs: $1.131

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$2.652

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of PA3202NL

Part Number	PA3202NL	Manufacturer	Pulse Electronics Corporation
Description	CURR SENSE XFMR ROGOWSKI 200A	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	14341 pcs	Data sheet	PA3202NL.pdf
Type	Non-Invasive (Solid Core)	Turns Ratio - Primary:Secondary	Rogowski Coil
Termination Style	Wire Leads	Size / Dimension	1.669" L x 1.587" W (42.40mm x 40.30mm)
Series	Sidewinder®, PA32XXNL	Ratings	-
Packaging	Tray	Other Names	553-2174
Mounting Type	Chassis Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	13 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Inductance	1.75mH	Height - Seated (Max)	0.580" (14.73mm)
Frequency Range	50/60Hz	Energy Time (E.T.)	-
Detailed Description	200A Rogowski Coil Current Sense Transformer 50/60Hz 54 Ohm Max 1.75mH Chassis Mount	DC Resistance (DCR)	54 Ohm Max
Current Ratio	-	Current Rating	200A
