PA0368.100NLT

Pulse Electronics Corporation

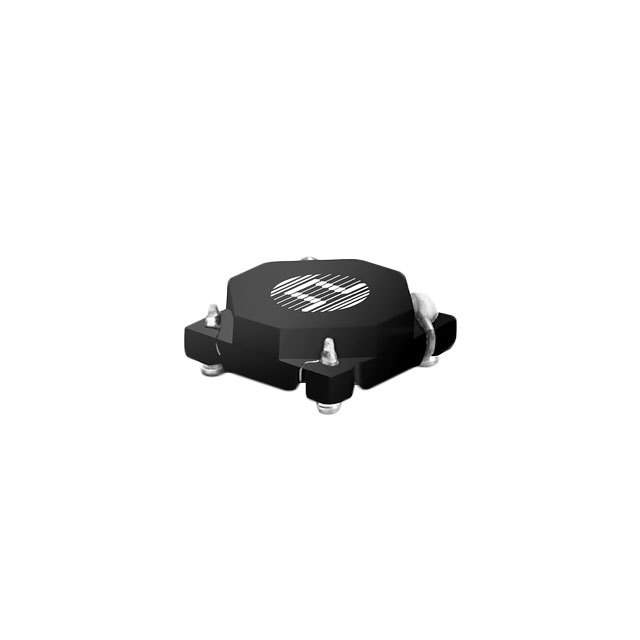

Image may be representation. See specifications for product details.

Product Overview

Part Number:	PA0368.100NLT
Manufacturer/Brand:	Pulse Electronics Corporation
Product description	CURR SENSE XFMR 1:100 SMD
Datasheets:	PA0368.100NLT.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	37518 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 37518 pcs

Reference Price (In US Dollars)

1 pcs: $0.824

10 pcs: $0.658

25 pcs: $0.535

50 pcs: $0.521

100 pcs: $0.507

250 pcs: $0.494

500 pcs: $0.489

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.824

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of PA0368.100NLT

Part Number	PA0368.100NLT	Manufacturer	Pulse Electronics Corporation
Description	CURR SENSE XFMR 1:100 SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	37518 pcs	Data sheet	PA0368.100NLT.pdf
Type	Invasive	Turns Ratio - Primary:Secondary	1:100
Termination Style	-	Size / Dimension	0.325" L x 0.286" W (8.25mm x 7.25mm)
Series	PA0368NL	Ratings	-
Packaging	Original-Reel®	Other Names	553-3810-6
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	11 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Inductance	6.7mH	Height - Seated (Max)	0.134" (3.40mm)
Frequency Range	50kHz ~ 1MHz	Energy Time (E.T.)	-
Detailed Description	1:100 Current Sense Transformer 50kHz ~ 1MHz 4 mOhm Primary, 1.6 Ohm Secondary 6.7mH Surface Mount	DC Resistance (DCR)	4 mOhm Primary, 1.6 Ohm Secondary
Current Ratio	-
