PA0367ANLT

Pulse Electronics Corporation

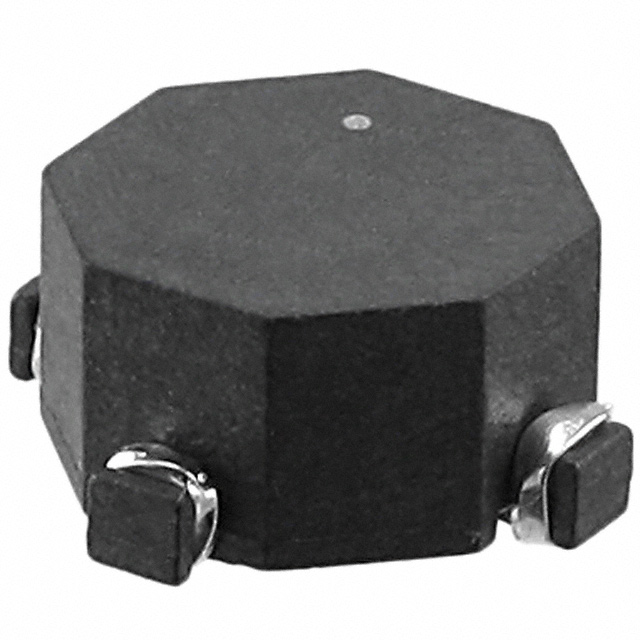

Image may be representation. See specifications for product details.

Product Overview

Part Number:	PA0367ANLT
Manufacturer/Brand:	Pulse Electronics Corporation
Product description	TRANSFORMER 18UH 1:12 SMD
Datasheets:	PA0367ANLT.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	23431 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 23431 pcs

Reference Price (In US Dollars)

1 pcs: $1.615

10 pcs: $1.307

25 pcs: $1.057

50 pcs: $0.99

100 pcs: $0.946

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.615

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of PA0367ANLT

Part Number	PA0367ANLT	Manufacturer	Pulse Electronics Corporation
Description	TRANSFORMER 18UH 1:12 SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	23431 pcs	Data sheet	PA0367ANLT.pdf
Voltage - Primary	-	Voltage - Isolation	500Vrms
Voltage - Auxiliary	-	Type	For DC/DC Converters
Size / Dimension	0.360" L x 0.360" W (9.14mm x 9.14mm)	Series	-
Packaging	Cut Tape (CT)	Other Names	553-1978-1
Operating Temperature	-40°C ~ 130°C	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	13 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Intended Chipset	LT3420
Inductance @ Frequency	-	Height - Seated (Max)	0.215" (5.45mm)
Frequency	-	Footprint	0.460" L x 0.460" W (11.68mm x 11.68mm)
Chipset Manufacturer	Linear Technology	Applications	Flyback Converters
