BX4290LNL

Pulse Electronics Corporation

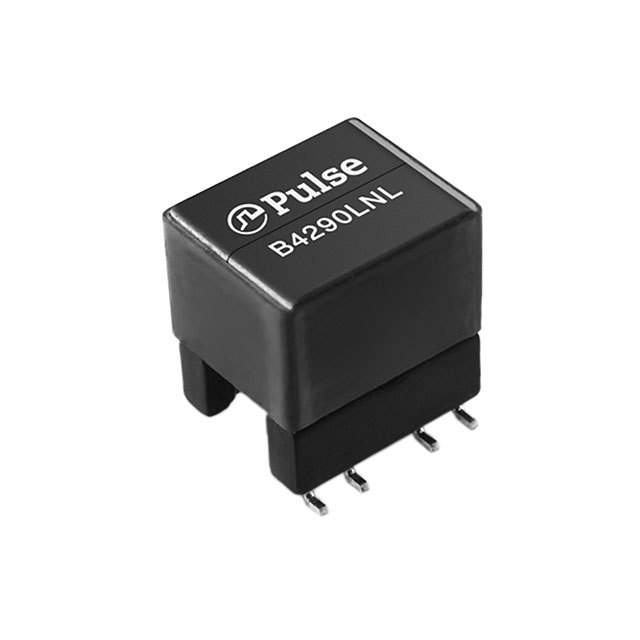

Image may be representation. See specifications for product details.

Product Overview

Part Number:	BX4290LNL
Manufacturer/Brand:	Pulse Electronics Corporation
Product description	PULSE XFMR 1.25:1 100UH
Datasheets:	BX4290LNL.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	21565 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 21565 pcs

Reference Price (In US Dollars)

1 pcs: $1.571

10 pcs: $1.273

25 pcs: $1.03

95 pcs: $0.965

190 pcs: $0.921

285 pcs: $0.894

570 pcs: $0.867

1045 pcs: $0.84

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.571

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of BX4290LNL

Part Number	BX4290LNL	Manufacturer	Pulse Electronics Corporation
Description	PULSE XFMR 1.25:1 100UH	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	21565 pcs	Data sheet	BX4290LNL.pdf
Weight	-	Turns Ratio - Primary:Secondary	1.25:1
Transformer Type	VDSL	Size / Dimension	0.315" L x 0.315" W (8.00mm x 8.00mm)
Series	-	Other Names	553-2758
Operating Temperature	-40°C ~ 85°C	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	16 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Inductance	100µH
Height - Seated (Max)	0.388" (9.86mm)	Energy Time (E.T.)	-
