BX4289LNL

Pulse Electronics Corporation

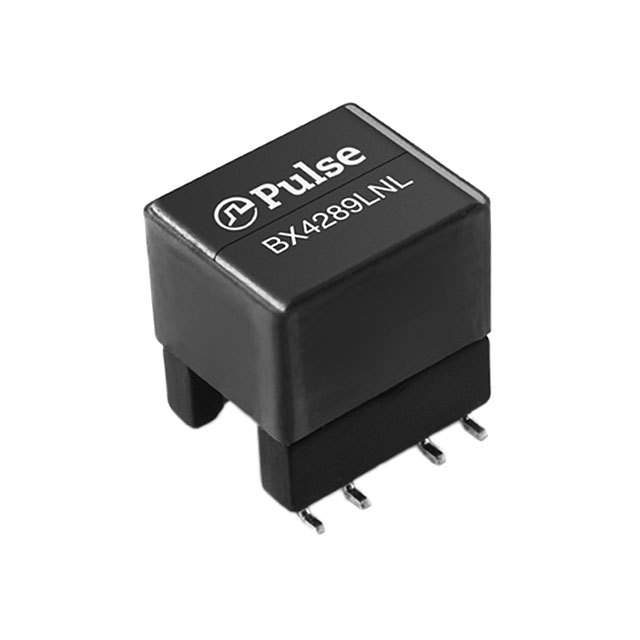

Image may be representation. See specifications for product details.

Product Overview

Part Number:	BX4289LNL
Manufacturer/Brand:	Pulse Electronics Corporation
Product description	PULSE XFMR 1.4:1 100UH
Datasheets:	BX4289LNL.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	31142 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 31142 pcs

Reference Price (In US Dollars)

1 pcs: $1.142

10 pcs: $0.925

25 pcs: $0.748

95 pcs: $0.701

190 pcs: $0.669

285 pcs: $0.65

570 pcs: $0.63

1045 pcs: $0.61

5035 pcs: $0.561

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.142

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of BX4289LNL

Part Number	BX4289LNL	Manufacturer	Pulse Electronics Corporation
Description	PULSE XFMR 1.4:1 100UH	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	31142 pcs	Data sheet	BX4289LNL.pdf
Weight	-	Turns Ratio - Primary:Secondary	1.4:1
Transformer Type	VDSL	Size / Dimension	0.386" L x 0.354" W (9.80mm x 9.00mm)
Series	-	Other Names	553-2757
Operating Temperature	-40°C ~ 85°C	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	16 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Inductance	100µH
Height - Seated (Max)	0.425" (10.80mm)	Energy Time (E.T.)	-
