26DBM10D2U-L

Portescap

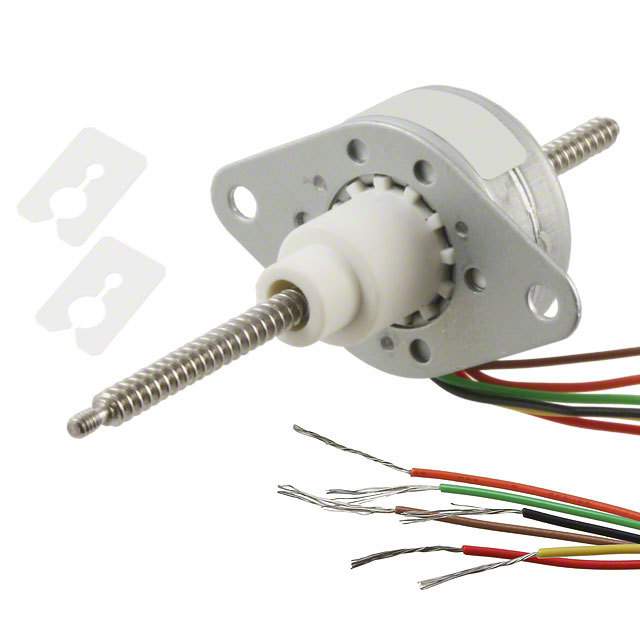

Image may be representation. See specifications for product details.

Product Overview

Part Number:	26DBM10D2U-L
Manufacturer/Brand:	Portescap
Product description	STEPPER MOTOR PM LINEAR ACT 12V
Datasheets:	1.26DBM10D2U-L.pdf 2.26DBM10D2U-L.pdf 3.26DBM10D2U-L.pdf 4.26DBM10D2U-L.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	1706 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 1706 pcs

Reference Price (In US Dollars)

1 pcs: $20.937

5 pcs: $20.576

10 pcs: $20.214

25 pcs: $19.853

50 pcs: $19.493

100 pcs: $19.204

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$20.937

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 26DBM10D2U-L

Part Number	26DBM10D2U-L	Manufacturer	Portescap
Description	STEPPER MOTOR PM LINEAR ACT 12V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	1706 pcs	Data sheet	1.26DBM10D2U-L.pdf 2.26DBM10D2U-L.pdf 3.26DBM10D2U-L.pdf 4.26DBM10D2U-L.pdf
Weight	0.075 lb (34.02g)	Voltage - Rated	12VDC
Type	Permanent Magnet Linear Actuator	Torque - Holding (oz-in / mNm)	-
Termination Style	Wire Leads	Steps per Revolution	48
Step Angle	7.5°	Size / Dimension	Round - 1.030" Dia (26.16mm)
Series	26DBM-L	Rotor Inertia	-
Other Names	26DBM10D2UL 403-1032	Operating Temperature	-20°C ~ 70°C
Mounting Hole Spacing	1.030" (26.16mm)	Manufacturer Standard Lead Time	10 Weeks
Length - Shaft and Bearing	3.150" (80.00mm)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Features	Threaded Shaft	Diameter - Shaft	0.135" (3.43mm)
Detailed Description	Unipolar Stepper Motor 140mA 12VDC	Current Rating	140mA
Coil Type	Unipolar	Coil Resistance	84 Ohms
Approvals	-	Accuracy	±15%
