Seeed
| Part Number | 108990004 | Manufacturer | Seeed |
|---|---|---|---|

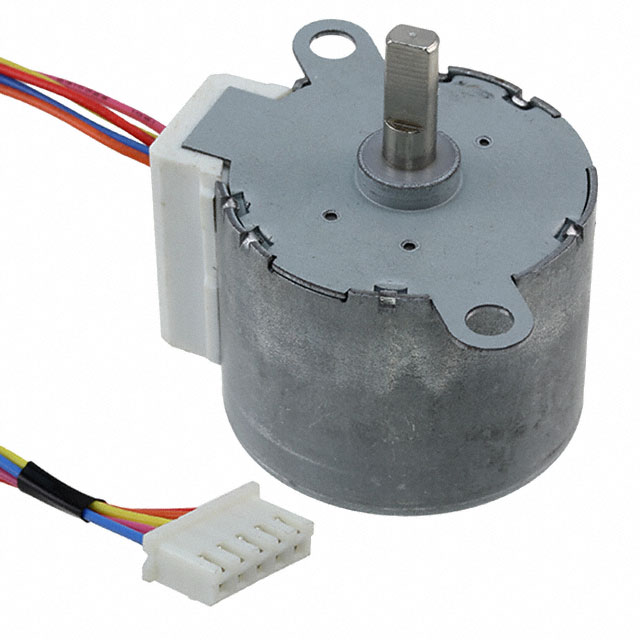

| Description | STEPPER MOTOR PM UNIPOLAR 12V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5217 pcs | Data sheet | 108990004.pdf |
| Weight | 0.178 lb (80.74g) | Voltage - Rated | 12VDC |
| Type | Permanent Magnet | Torque - Holding (oz-in / mNm) | 41.66 / 294.2 |
| Termination Style | Wire Leads with Connector | Steps per Revolution | 42.5 |
| Step Angle | 3.75° | Size / Dimension | Round - 1.378" Dia (35.00mm) |
| Series | - | Rotor Inertia | - |
| Other Names | 108990004-ND 1597-1204 800182001 800182001-ND |
Operating Temperature | - |
| Mounting Hole Spacing | 1.650" (42.00mm) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Length - Shaft and Bearing | 1.181" (30.00mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Features | Round Shaft | Diameter - Shaft | 0.197" (5.00mm) |
| Detailed Description | Unipolar Stepper Motor 12VDC | Coil Type | Unipolar |
| Coil Resistance | 100 Ohms | Approvals | - |
| Accuracy | - |
