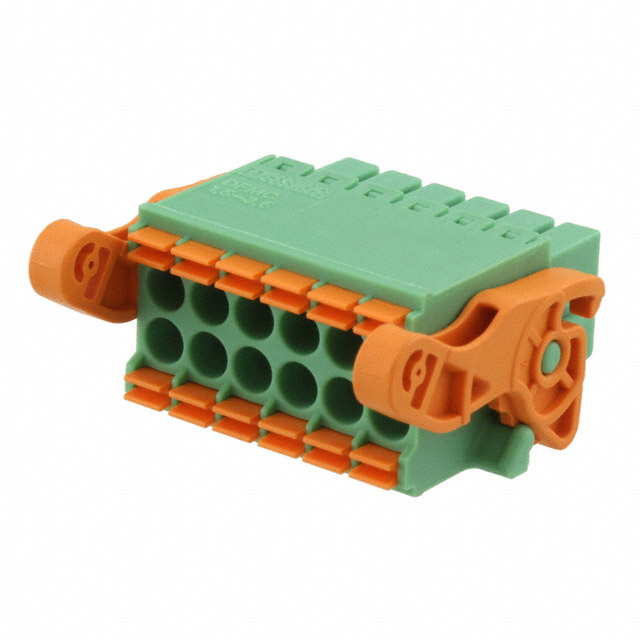

Phoenix Contact
| Part Number | 1790522 | Manufacturer | Phoenix Contact |
|---|---|---|---|
| Description | TERM BLOCK PLUG 12POS STR 3.5MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 10715 pcs | Data sheet | 1790522.pdf |
| Wire Strip Length | - | Wire Gauge or Range - mm² | 16-24 AWG |
| Wire Gauge or Range - Coaxial | 0.2-1.5mm² | Voltage - UL | 8A |
| Voltage - IEC | 8A | Voltage - DC Spark Over (Nom) | - |
| Type Attributes | - | Type | Plug, Female Sockets |
| Torque - Screw | Tin | Termination Style | Screwless - Push-In Spring |
| Terminal - Width | 2 | Series | COMBICON DFMC |
| RoHS Status | Bulk | Plug Wire Entry | - |
| Other Names | 1790522-ND 277-8800 DFMC1,5/6-ST-3,5-LR DFMC156ST35LR |
Operating Temperature | - |
| Number of Positions | 12 | Number of Conductors | 0.138" (3.50mm) |
| Mounting Type | Free Hanging (In-Line) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 3 Weeks |
| Manufacturer Part Number | 1790522 | Header Orientation | 6 |
| Front Panel Wire Connection | - | Filter Type | 150V |
| Features | Ejector Latches | Expanded Description | 12 Position Terminal Block Plug, Female Sockets 0.138" (3.50mm) 180° Free Hanging (In-Line) |
| Description | TERM BLOCK PLUG 12POS STR 3.5MM | Current - UL | 250V |
| Contact Tail Length | 10mm | Contact Mating Finish | 180° |
| Contact Finish - Mating | 0.522" (13.25mm) | Color | Green |
| Cable Opening | Polyamide (PA), Nylon | Bundle Center to Mounting Center | - |
