Phoenix Contact

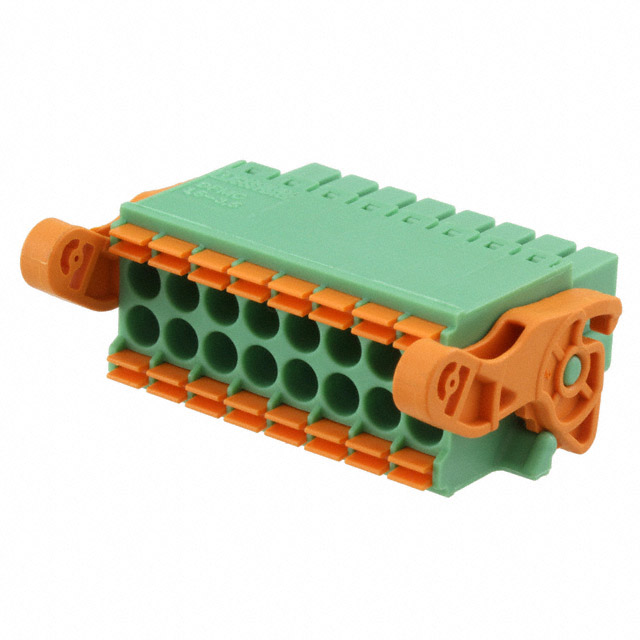

| Part Number | 1790548 | Manufacturer | Phoenix Contact |
|---|---|---|---|
| Description | TERM BLOCK PLUG 16POS STR 3.5MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 6704 pcs | Data sheet | 1790548.pdf |
| Wire Strip Length | 10mm | Wire Gauge or Range - mm² | 0.2-1.5mm² |
| Wire Gauge or Range - AWG | 16-24 AWG | Voltage - UL | 150V |
| Voltage - IEC | 250V | Type | Plug, Female Sockets |
| Torque - Screw | - | Termination Style | Screwless - Push-In Spring |
| Series | COMBICON DFMC | Screw Size | - |
| Positions Per Level | 8 | Plug Wire Entry | 180° |
| Pitch | 0.138" (3.50mm) | Packaging | Bulk |
| Other Names | 1790548-ND 277-9786 DFMC1,5/8-ST-3,5-LR DFMC158ST35LR |
Operating Temperature | - |
| Number of Positions | 16 | Number of Levels | 2 |
| Mounting Type | Free Hanging (In-Line) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Height | 0.522" (13.25mm) | Ingress Protection | - |
| Housing Material | Polyamide (PA), Nylon | Header Orientation | - |
| Features | Ejector Latches | Detailed Description | 16 Position Terminal Block Plug, Female Sockets 0.138" (3.50mm) 180° Free Hanging (In-Line) |
| Current - UL | 8A | Current - IEC | 8A |
| Contact Tail Length | - | Contact Mating Finish | Tin |
| Contact Material | - | Color | Green |
