Phoenix Contact
| Part Number | 1969713 | Manufacturer | Phoenix Contact |
|---|---|---|---|
| Description | TERM BLOCK HDR 4POS VERT 10.16MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5063 pcs | Data sheet | 1969713.pdf |
| Wire Strip Length | - | Wire Gauge or Range - mm² | - |
| Wire Gauge or Range - AWG | - | Voltage - UL | 300V |
| Voltage - IEC | 1kV | Type | Header, Female Sockets |
| Torque - Screw | - | Termination Style | Solder |
| Series | COMBICON IPCV | Screw Size | - |
| Positions Per Level | 4 | Plug Wire Entry | - |
| Pitch | 0.400" (10.16mm) | Packaging | Bulk |
| Other Names | 1969713-ND 277-9135 IPCV 16/ 4-G-10,16 IPCV16/4-G-10,16 |
Operating Temperature | - |
| Number of Positions | 4 | Number of Levels | 1 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 2 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Height | 1.264" (32.10mm) |
| Ingress Protection | - | Housing Material | Polyamide (PA), Nylon |
| Header Orientation | Vertical | Features | - |

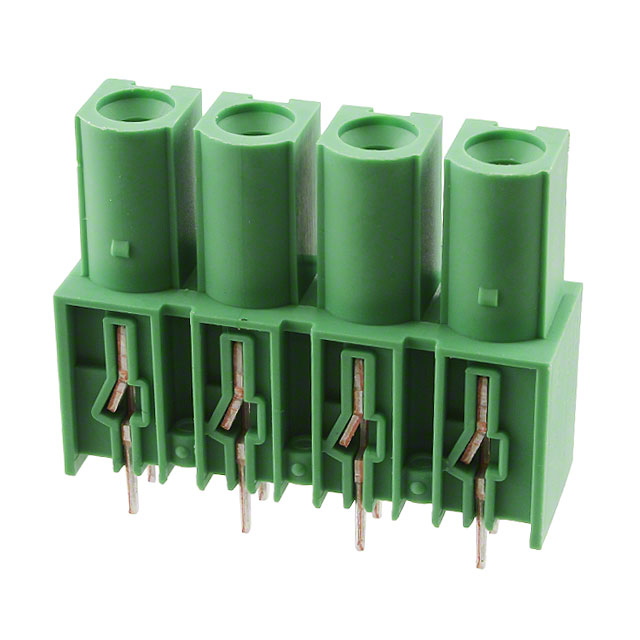

| Detailed Description | 4 Position Terminal Block Header, Female Sockets 0.400" (10.16mm) Vertical Through Hole | Current - UL | 66A |
| Current - IEC | 76A | Contact Tail Length | 0.157" (4.00mm) |
| Contact Mating Finish | Silver | Contact Material | - |
| Color | Green |
