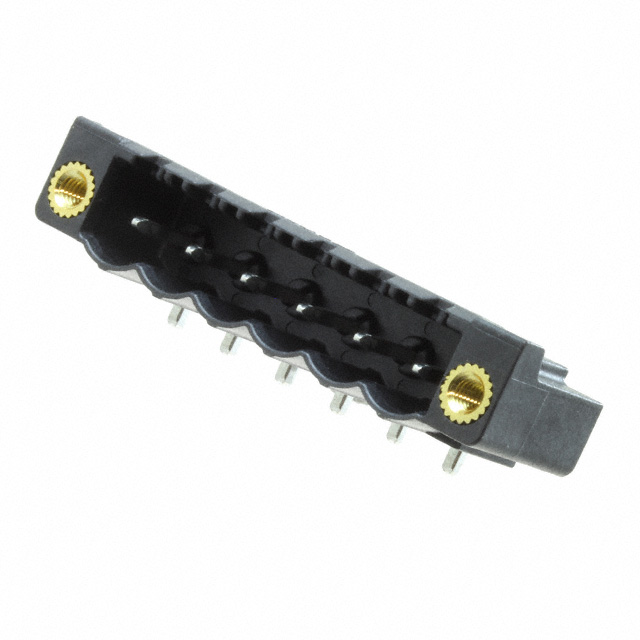

Part Number | 1836722 | Manufacturer | Phoenix Contact |
---|---|---|---|
Description | TERM BLOCK HDR 6POS BLK | Lead Free Status / RoHS Status | |
Quantity Available | 13575 pcs | Data sheet | 1836722.pdf |
Wire Strip Length | - | Wire Gauge or Range - mm² | - |
Wire Gauge or Range - AWG | - | Voltage - UL | 300V |
Type | Header, Male Pins, Shrouded (4 Side) | Torque - Screw | - |
Termination Style | Solder | Series | COMBICON CC |
Screw Size | - | Positions Per Level | 6 |
Plug Wire Entry | - | Pitch | 0.197" (5.00mm) |
Packaging | Bulk | Other Names | 1836722-ND 277-16340 CC 2 5/ 6-GF-LR P20 THR |
Operating Temperature | -40°C | Number of Positions | 6 |
Number of Levels | 1 | Mounting Type | Through Hole |
Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | - |
Manufacturer Standard Lead Time | 3 Weeks | Insulation Height | 0.298" (7.57mm) |
Ingress Protection | - | Housing Material | Liquid Crystal Polymer (LCP) |
Header Orientation | 90°, Right Angle | Features | Mating Flange |
Detailed Description | 6 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.197" (5.00mm) 90°, Right Angle Through Hole | Current - UL | 16A |
Current - IEC | 12A | Contact Tail Length | 0.079" (2.00mm) |
Contact Mating Finish | Tin | Contact Material | - |
Color | Black |
