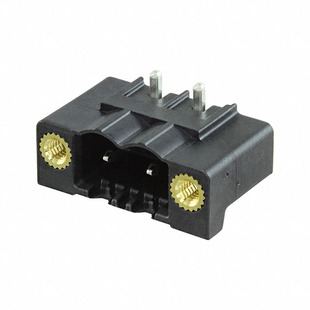

Phoenix Contact
| Part Number | 1836683 | Manufacturer | Phoenix Contact |
|---|---|---|---|
| Description | TERM BLOCK HDR 2POS BLK | Lead Free Status / RoHS Status | |
| Quantity Available | 28018 pcs | Data sheet | 1836683.pdf |
| Wire Strip Length | - | Wire Gauge or Range - mm² | - |
| Wire Gauge or Range - AWG | - | Voltage - UL | 300V |
| Type | Header, Male Pins, Shrouded (4 Side) | Torque - Screw | - |
| Termination Style | Solder | Series | COMBICON CC |
| Screw Size | - | Positions Per Level | 2 |
| Plug Wire Entry | - | Pitch | 0.197" (5.00mm) |
| Packaging | Bulk | Other Names | 1836683-ND 277-16357 CC 2 5/ 2-GF-LR P20 THR |
| Operating Temperature | -40°C | Number of Positions | 2 |
| Number of Levels | 1 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | - |
| Manufacturer Standard Lead Time | 3 Weeks | Insulation Height | 0.298" (7.57mm) |
| Ingress Protection | - | Housing Material | Liquid Crystal Polymer (LCP) |
| Header Orientation | 90°, Right Angle | Features | Mating Flange |
| Detailed Description | 2 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.197" (5.00mm) 90°, Right Angle Through Hole | Current - UL | 16A |
| Current - IEC | 12A | Contact Tail Length | 0.079" (2.00mm) |
| Contact Mating Finish | Tin | Contact Material | - |
| Color | Black |
