Phoenix Contact

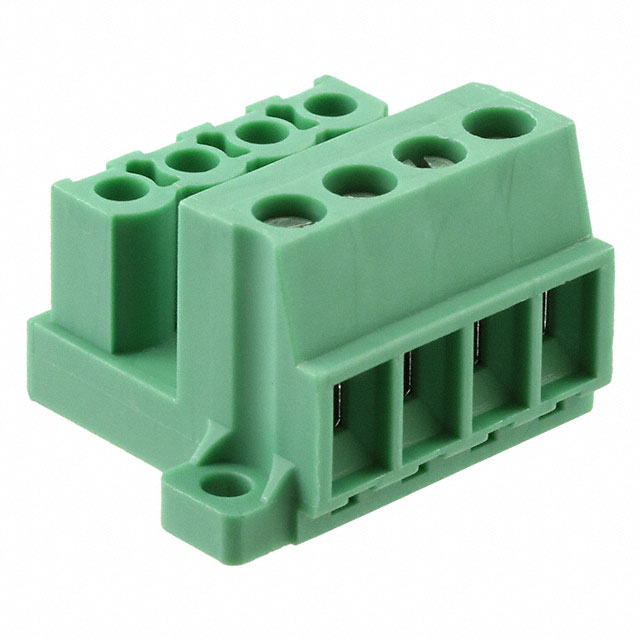

| Part Number | 1824146 | Manufacturer | Phoenix Contact |
|---|---|---|---|
| Description | TERM BLOCK RCPT 4POS 5.08MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 11071 pcs | Data sheet | 1.1824146.pdf2.1824146.pdf |
| Wire Strip Length | 7mm | Wire Gauge or Range - mm² | 0.2-2.5mm² |
| Wire Gauge or Range - AWG | 12-30 AWG | Voltage - UL | 300V |
| Voltage - IEC | 630V | Type | Receptacle, Female Sockets |
| Torque - Screw | 0.5-0.6 Nm (4.4-5.3 Lb-In) | Termination Style | Screw |
| Series | COMBICON MSTBU | Screw Size | M3 |
| Positions Per Level | 4 | Plug Wire Entry | - |
| Pitch | 0.200" (5.08mm) | Packaging | Bulk |
| Other Names | 1824146-ND 277-14107 MSTBU 2 5/ 4-STD-5 08 |
Operating Temperature | - |
| Number of Positions | 4 | Number of Levels | 1 |
| Mounting Type | Board Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 2 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Height | 0.669" (17.00mm) |
| Ingress Protection | - | Housing Material | Polyamide (PA), Nylon |
| Header Orientation | - | Features | Mounting Flange, Retention Latches |
| Detailed Description | 4 Position Terminal Block Receptacle, Female Sockets 0.200" (5.08mm) Board Mount | Current - UL | 10A |
| Current - IEC | 12A | Contact Tail Length | - |
| Contact Mating Finish | Tin | Contact Material | - |
| Color | Green |
