Phoenix Contact
| Part Number | 1824145 | Manufacturer | Phoenix Contact |
|---|---|---|---|

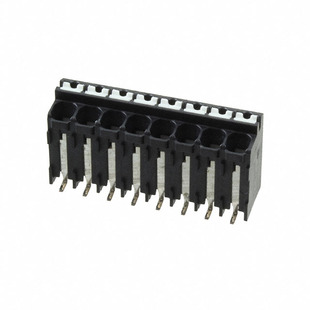

| Description | TERM BLOCK 8POS TOP 3.5MM SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 18008 pcs | Data sheet | 1824145.pdf |
| Wire Termination | Screwless - Leg Spring, Push-In Spring | Wire Gauge | 16-24 AWG |
| Voltage | 300V | Torque - Screw | - |
| Series | COMBICON SPT-SMD | Screw Thread | - |
| Screw Material - Plating | - | Positions Per Level | 8 |
| Pitch | 0.138" (3.50mm) | Packaging | Tape & Reel (TR) |
| Other Names | 1824145-ND 277-11532 277-11532-2 277-11532-ND SPT-SMD 1 5/ 8-V-3 5 R72 |
Operating Temperature | - |
| Number of Levels | 1 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Orientation | Vertical with Board |
| Manufacturer Standard Lead Time | 2 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Housing Material | Liquid Crystal Polymer (LCP) | Features | - |
| Detailed Description | 8 Position Wire to Board Terminal Block Vertical with Board 0.138" (3.50mm) Surface Mount | Current | 10A |
| Contact Material - Plating | Tin Plated | Color | Black |
| Clamp Material - Plating | - |
