Panasonic

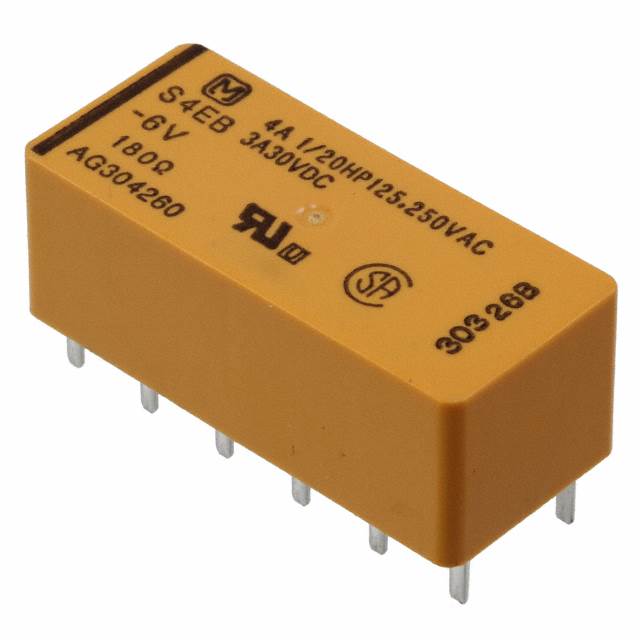

| Part Number | S4EB-6V | Manufacturer | Panasonic |
|---|---|---|---|
| Description | RELAY GEN PURPOSE SPST X 4 4A 6V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5388 pcs | Data sheet | S4EB-6V.pdf |
| Turn On Voltage (Max) | 4.2 VDC | Turn Off Voltage (Min) | 0.6 VDC |
| Termination Style | PC Pin | Switching Voltage | 250VAC, 48VDC - Max |
| Series | S | Release Time | 10ms |
| Relay Type | General Purpose | Packaging | Tube |
| Other Names | 255-3978-5 S4EB-6V-ND S4EB6V |
Operating Temperature | -55°C ~ 65°C |
| Operate Time | 15ms | Mounting Type | Through Hole |
| Manufacturer Standard Lead Time | 10 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Features | Sealed - Amber | Detailed Description | General Purpose Relay SPST-NO (1 Form A) x 4 6VDC Coil Through Hole |
| Contact Rating (Current) | 4A | Contact Material | Silver Alloy, Cadmium Free |
| Contact Form | SPST-NO (1 Form A) x 4 | Coil Voltage | 6VDC |
| Coil Type | Non Latching | Coil Resistance | 180 Ohms |
| Coil Power | 200 mW | Coil Current | 33.3mA |
