JJM1-12V

Panasonic

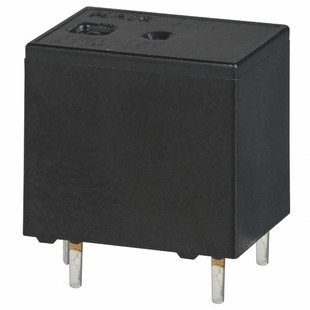

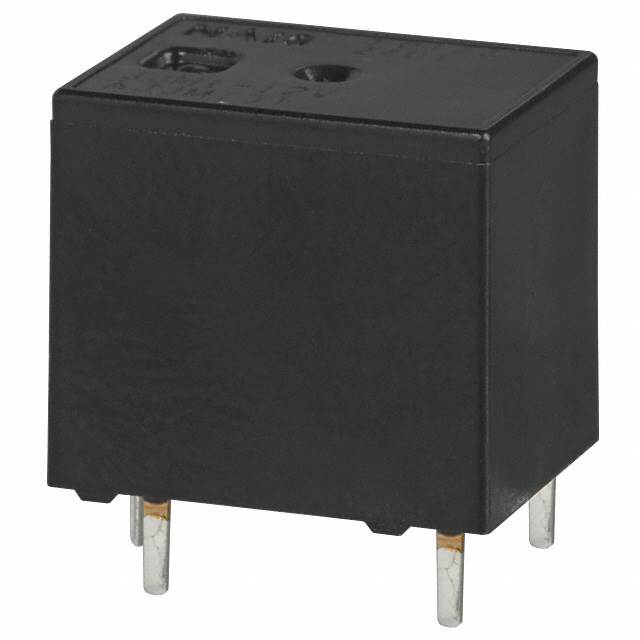

Image may be representation. See specifications for product details.

Product Overview

Part Number:	JJM1-12V
Manufacturer/Brand:	Panasonic
Product description	RELAY AUTOMOTIVE SPDT 20A 12V
Datasheets:	1.JJM1-12V.pdf 2.JJM1-12V.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	28002 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 28002 pcs

Reference Price (In US Dollars)

1 pcs: $1.282

10 pcs: $1.203

25 pcs: $1.069

50 pcs: $1.016

100 pcs: $0.962

250 pcs: $0.855

500 pcs: $0.802

1000 pcs: $0.748

5000 pcs: $0.722

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.282

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of JJM1-12V

Part Number	JJM1-12V	Manufacturer	Panasonic
Description	RELAY AUTOMOTIVE SPDT 20A 12V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	28002 pcs	Data sheet	1.JJM1-12V.pdf 2.JJM1-12V.pdf
Turn On Voltage (Max)	7.2 VDC	Turn Off Voltage (Min)	1 VDC
Termination Style	PC Pin	Switching Voltage	14VDC - Nom
Series	JJM	Release Time	10ms
Packaging	Bulk	Other Names	255-2220 JJM1-12V-ND JJM112V
Operating Temperature	-40°C ~ 85°C	Operate Time	10ms
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	16 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Features	Sealed - Fully	Contact Rating (Current)	20A
Contact Material	Silver Alloy, Cadmium Free	Contact Form	SPDT (1 Form C)
Coil Voltage	12VDC	Coil Type	Non Latching
Coil Resistance	225 Ohms	Coil Power	640 mW
Coil Current	53.3mA
