ESE-23F101

Panasonic

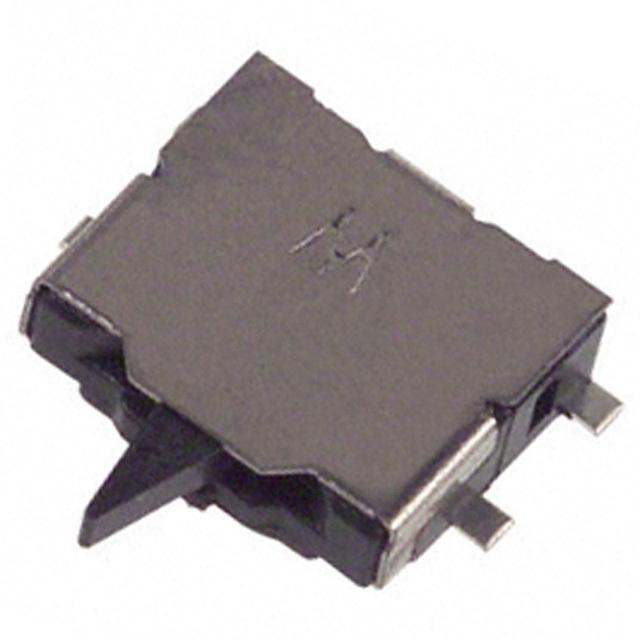

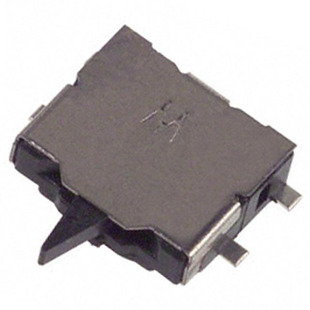

Image may be representation. See specifications for product details.

Product Overview

Part Number:	ESE-23F101
Manufacturer/Brand:	Panasonic
Product description	SWITCH DETECTOR SPDT 10MA 5V
Datasheets:	ESE-23F101.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	106824 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 106824 pcs

Reference Price (In US Dollars)

1 pcs: $0.314

10 pcs: $0.298

25 pcs: $0.286

50 pcs: $0.274

100 pcs: $0.262

250 pcs: $0.209

500 pcs: $0.191

1000 pcs: $0.185

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.314

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of ESE-23F101

Part Number	ESE-23F101	Manufacturer	Panasonic
Description	SWITCH DETECTOR SPDT 10MA 5V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	106824 pcs	Data sheet	ESE-23F101.pdf
Voltage Rating - DC	5V	Termination Style	SMD (SMT) Tab
Switch Function	Mom-Off-Mom	Series	ESE23
Release Force	-	Pretravel	-
Packaging	Cut Tape (CT)	Overtravel	-
Other Names	P12342SCT	Operating Temperature	-10°C ~ 60°C
Operating Position	0.087" (2.2mm)	Operating Force	30gf
Mounting Type	Surface Mount, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mechanical Life	50,000 Cycles	Manufacturer Standard Lead Time	10 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	-
Features	Board Guide	Electrical Life	50,000 Cycles
Differential Travel	-	Current Rating	10mA (DC)
Circuit	SPDT	Actuator Type	Angled Toggle (Detector)
