ESE-22MV21

Panasonic

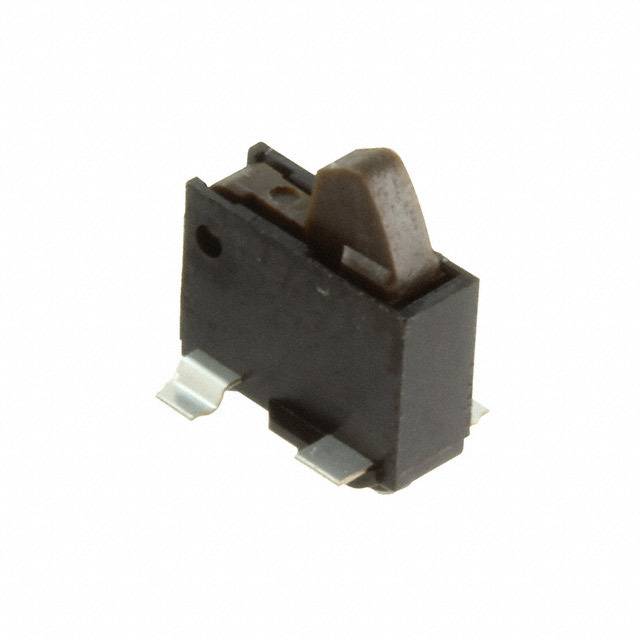

Image may be representation. See specifications for product details.

Product Overview

Part Number:	ESE-22MV21
Manufacturer/Brand:	Panasonic
Product description	SWITCH DETECTOR SPST
Datasheets:	ESE-22MV21.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	182998 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 182998 pcs

Reference Price (In US Dollars)

1 pcs: $0.188

10 pcs: $0.178

25 pcs: $0.171

50 pcs: $0.164

100 pcs: $0.157

250 pcs: $0.125

500 pcs: $0.114

1000 pcs: $0.111

5000 pcs: $0.10

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.188

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of ESE-22MV21

Part Number	ESE-22MV21	Manufacturer	Panasonic
Description	SWITCH DETECTOR SPST	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	182998 pcs	Data sheet	ESE-22MV21.pdf
Voltage Rating - DC	5V	Termination Style	SMD (SMT) Tab
Switch Function	Off-Mom	Series	ESE22
Release Force	-	Pretravel	-
Packaging	Bulk	Overtravel	-
Other Names	ESE-22MV21-ND ESE22MV21 ESE22MV21-ND P122547 Q2168426 Q3263904 Q3990454 Q4233170 Q4733294 Q4733294A Q4791270	Operating Temperature	-10°C ~ 70°C
Operating Position	0.232" (5.9mm)	Operating Force	30gf
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mechanical Life	50,000 Cycles	Manufacturer Standard Lead Time	11 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	-
Features	Board Guide	Electrical Life	50,000 Cycles
Differential Travel	-	Current Rating	10mA (DC)
Circuit	SPST-NO	Actuator Type	Angled Toggle (Detector)
