Panasonic

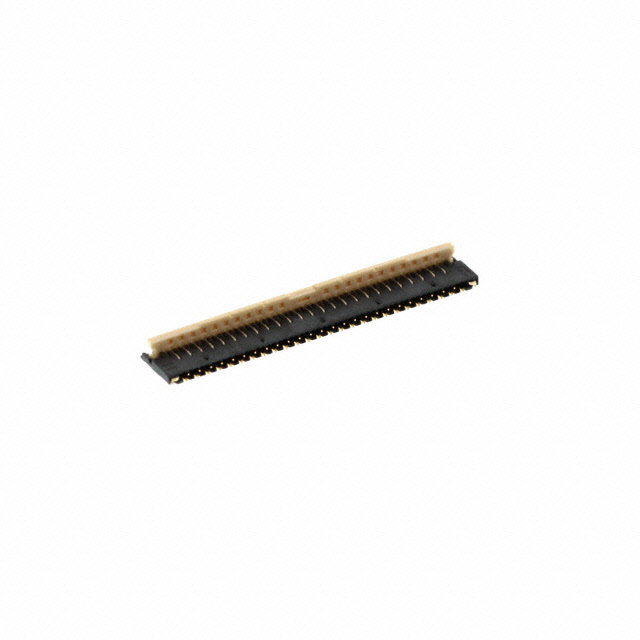

| Part Number | AYF355125A | Manufacturer | Panasonic |
|---|---|---|---|
| Description | CONN FPC TOP 51POS 0.3MM SMD R/A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 22776 pcs | Data sheet | AYF355125A.pdf |
| Voltage Rating | 50V | Termination | Solder |
| Series | Y3BL | Pitch | 0.012" (0.30mm) |
| Packaging | Bulk | Other Names | 255-5661 AYF355125A-ND |
| Operating Temperature | -55°C ~ 85°C | Number of Positions | 51 |
| Mounting Type | Surface Mount, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mating Cycles | 20 | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 10 Weeks | Locking Feature | Flip Lock, Backlock |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Housing Material | Liquid Crystal Polymer (LCP) |
| Housing Color | - | Height Above Board | 0.023" (0.59mm) |
| Flat Flex Type | FPC | Features | - |
| FFC, FCB Thickness | 0.20mm | Detailed Description | 51 Position FPC Connector Contacts, Top 0.012" (0.30mm) Surface Mount, Right Angle |
| Current Rating | 0.2A per Contact | Contact Material | Copper Alloy |
| Contact Finish Thickness | - | Contact Finish | Gold |
| Connector/Contact Type | Contacts, Top | Cable End Type | Tapered |
| Actuator Material | Liquid Crystal Polymer (LCP) | Actuator Color | - |
