AYF353125A

Panasonic

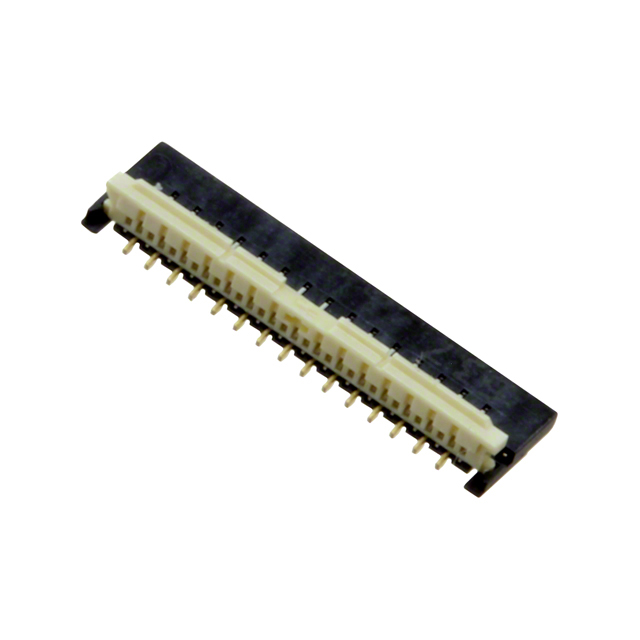

Image may be representation. See specifications for product details.

Product Overview

Part Number:	AYF353125A
Manufacturer/Brand:	Panasonic
Product description	CONN FPC TOP 31POS 0.3MM SMD R/A
Datasheets:	AYF353125A.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	39070 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 39070 pcs

Reference Price (In US Dollars)

1 pcs: $0.95

10 pcs: $0.91

25 pcs: $0.834

50 pcs: $0.797

100 pcs: $0.759

250 pcs: $0.664

500 pcs: $0.645

1000 pcs: $0.55

2500 pcs: $0.512

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.95

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of AYF353125A

Part Number	AYF353125A	Manufacturer	Panasonic
Description	CONN FPC TOP 31POS 0.3MM SMD R/A	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	39070 pcs	Data sheet	AYF353125A.pdf
Voltage Rating	50V	Termination	Solder
Series	Y3BL	Pitch	0.012" (0.30mm)
Packaging	Bulk	Other Names	255-5659 AYF353125A-ND
Operating Temperature	-55°C ~ 85°C	Number of Positions	31
Mounting Type	Surface Mount, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mating Cycles	20	Material Flammability Rating	UL94 V-0
Manufacturer Standard Lead Time	10 Weeks	Locking Feature	Flip Lock, Backlock
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Housing Material	Liquid Crystal Polymer (LCP)
Housing Color	-	Height Above Board	0.023" (0.59mm)
Flat Flex Type	FPC	Features	-
FFC, FCB Thickness	0.20mm	Detailed Description	31 Position FPC Connector Contacts, Top 0.012" (0.30mm) Surface Mount, Right Angle
Current Rating	0.2A per Contact	Contact Material	Copper Alloy
Contact Finish Thickness	-	Contact Finish	Gold
Connector/Contact Type	Contacts, Top	Cable End Type	Tapered
Actuator Material	Liquid Crystal Polymer (LCP)	Actuator Color	-
