Panasonic
| Part Number | AYF315115 | Manufacturer | Panasonic |
|---|---|---|---|

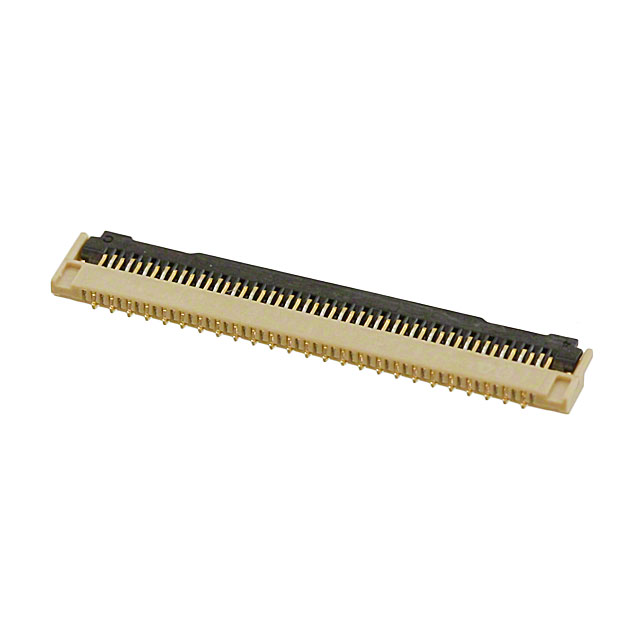

| Description | CONN FPC BOTTOM 51POS 0.30MM R/A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 3709 pcs | Data sheet | AYF315115.pdf |
| Voltage Rating | 50V | Termination | Solder |
| Series | Y3FT | Pitch | 0.012" (0.30mm) |
| Packaging | Tape & Reel (TR) | Other Names | 255-3479-2 |
| Operating Temperature | -55°C ~ 85°C | Number of Positions | 51 |
| Mounting Type | Surface Mount, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mating Cycles | 30 | Material Flammability Rating | UL94 V-0 |
| Locking Feature | Flip Lock | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Housing Material | Liquid Crystal Polymer (LCP) | Housing Color | - |
| Height Above Board | 0.035" (0.88mm) | Flat Flex Type | FPC |
| Features | Zero Insertion Force (ZIF) | FFC, FCB Thickness | 0.20mm |
| Detailed Description | 51 Position FPC Connector Contacts, Bottom 0.012" (0.30mm) Surface Mount, Right Angle | Current Rating | 0.2A per Contact |
| Contact Material | Copper Alloy | Contact Finish Thickness | Flash |
| Contact Finish | Gold | Connector/Contact Type | Contacts, Bottom |
| Cable End Type | Tabbed | Actuator Material | Liquid Crystal Polymer (LCP) |
| Actuator Color | - |
