AYF216135A

Panasonic

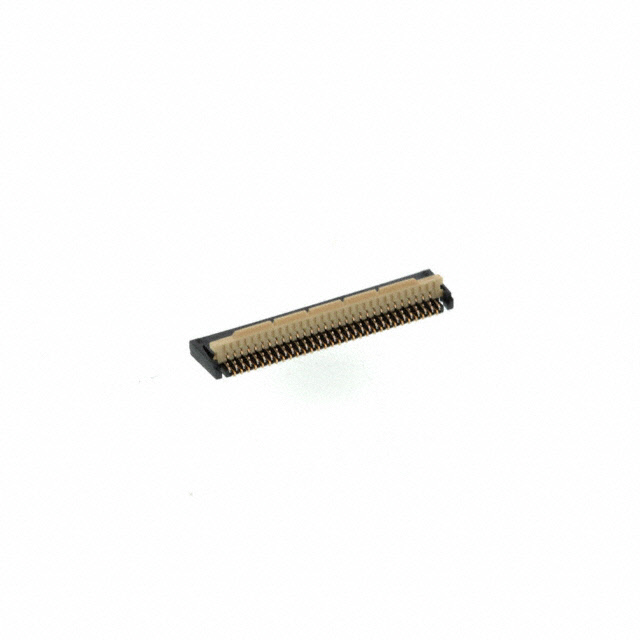

Image may be representation. See specifications for product details.

Product Overview

Part Number:	AYF216135A
Manufacturer/Brand:	Panasonic
Product description	CONN FPC 61POS 0.2MM SMD R/A
Datasheets:	AYF216135A.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	24939 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 24939 pcs

Reference Price (In US Dollars)

1 pcs: $1.564

10 pcs: $1.50

25 pcs: $1.375

50 pcs: $1.312

100 pcs: $1.25

250 pcs: $1.094

500 pcs: $1.062

1000 pcs: $0.906

2500 pcs: $0.844

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.564

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of AYF216135A

Part Number	AYF216135A	Manufacturer	Panasonic
Description	CONN FPC 61POS 0.2MM SMD R/A	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	24939 pcs	Data sheet	AYF216135A.pdf
Voltage Rating	50V	Termination	Solder
Series	Y2B	Pitch	0.008" (0.20mm)
Packaging	Bulk	Other Names	255-5643 AYF216135A-ND
Operating Temperature	-55°C ~ 85°C	Number of Positions	61
Mounting Type	Surface Mount, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mating Cycles	20	Material Flammability Rating	UL94 V-0
Manufacturer Standard Lead Time	10 Weeks	Locking Feature	Rotary Lock, Backlock
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Housing Material	Liquid Crystal Polymer (LCP)
Housing Color	-	Height Above Board	0.035" (0.88mm)
Flat Flex Type	FPC	Features	-
FFC, FCB Thickness	0.20mm	Detailed Description	61 Position FPC Connector Contacts, Top and Bottom 0.008" (0.20mm) Surface Mount, Right Angle
Current Rating	0.2A per Contact	Contact Material	Copper Alloy
Contact Finish Thickness	-	Contact Finish	Gold
Connector/Contact Type	Contacts, Top and Bottom	Cable End Type	Tapered
Actuator Material	Liquid Crystal Polymer (LCP)	Actuator Color	-
