APT1211W

Panasonic

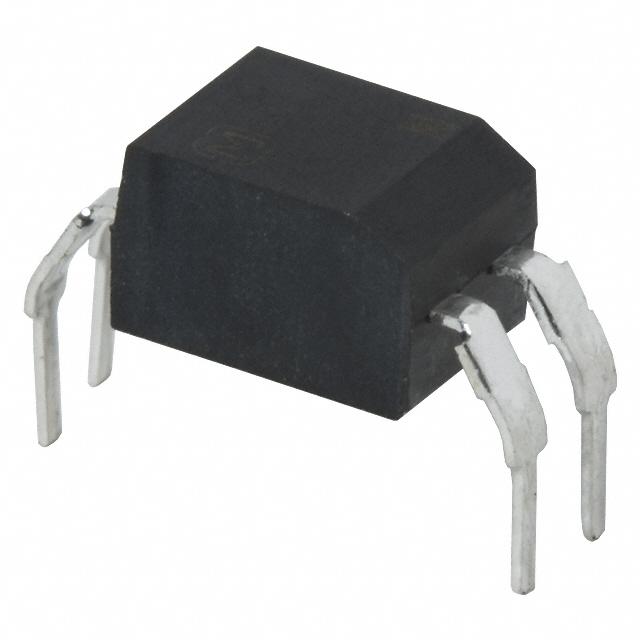

Image may be representation. See specifications for product details.

Product Overview

Part Number:	APT1211W
Manufacturer/Brand:	Panasonic
Product description	OPTOISOLATOR 5KV TRIAC 4DIP
Datasheets:	APT1211W.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	47691 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 47691 pcs

Reference Price (In US Dollars)

1 pcs: $0.672

10 pcs: $0.594

25 pcs: $0.44

100 pcs: $0.383

300 pcs: $0.345

500 pcs: $0.306

1000 pcs: $0.263

2500 pcs: $0.249

5000 pcs: $0.239

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$0.672

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of APT1211W

Part Number	APT1211W	Manufacturer	Panasonic
Description	OPTOISOLATOR 5KV TRIAC 4DIP	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	47691 pcs	Data sheet	APT1211W.pdf
Zero Crossing Circuit	Yes	Voltage - Off State	600V
Voltage - Isolation	5000Vrms	Voltage - Forward (Vf) (Typ)	1.21V
Turn On Time	100µs (Max)	Supplier Device Package	4-DIP
Static dV/dt (Min)	500V/µs	Series	APT
Packaging	Tube	Package / Case	4-DIP (0.400", 10.16mm)
Output Type	Triac	Other Names	255-5946 APT1211W-ND
Operating Temperature	-40°C ~ 100°C	Number of Channels	1
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	12 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Detailed Description	Optoisolator Triac Output 5000Vrms 1 Channel 4-DIP	Current - On State (It (RMS)) (Max)	100mA
Current - LED Trigger (Ift) (Max)	10mA	Current - Hold (Ih)	3.5mA
Current - DC Forward (If) (Max)	50mA	Approvals	cUR, VDE
