APT1211AX

Panasonic

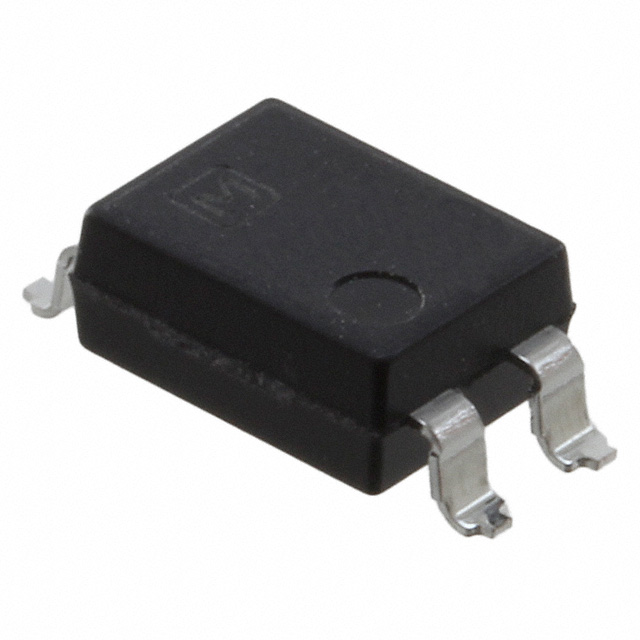

Image may be representation. See specifications for product details.

Product Overview

Part Number:	APT1211AX
Manufacturer/Brand:	Panasonic
Product description	OPTOISOLATOR 5KV TRIAC 4DIP
Datasheets:	APT1211AX.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	150902 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 150902 pcs

Reference Price (In US Dollars)

1000 pcs: $0.258

2000 pcs: $0.244

5000 pcs: $0.235

10000 pcs: $0.23

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$0.258

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of APT1211AX

Part Number	APT1211AX	Manufacturer	Panasonic
Description	OPTOISOLATOR 5KV TRIAC 4DIP	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	150902 pcs	Data sheet	APT1211AX.pdf
Zero Crossing Circuit	Yes	Voltage - Off State	600V
Voltage - Isolation	5000Vrms	Voltage - Forward (Vf) (Typ)	1.21V
Turn On Time	100µs (Max)	Supplier Device Package	4-DIP
Static dV/dt (Min)	500V/µs	Series	APT
Packaging	Tape & Reel (TR)	Package / Case	4-SMD, Gull Wing
Output Type	Triac	Other Names	255-5944-2 APT1211AX-ND
Operating Temperature	-40°C ~ 100°C	Number of Channels	1
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	12 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Detailed Description	Optoisolator Triac Output 5000Vrms 1 Channel 4-DIP	Current - On State (It (RMS)) (Max)	100mA
Current - LED Trigger (Ift) (Max)	10mA	Current - Hold (Ih)	3.5mA
Current - DC Forward (If) (Max)	50mA	Approvals	cUR, VDE
