ABS1510509

Panasonic

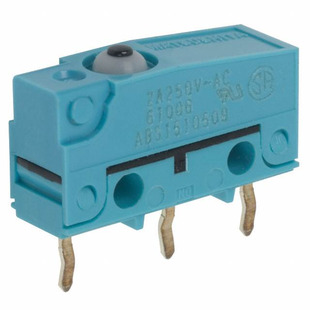

Image may be representation. See specifications for product details.

Product Overview

Part Number:	ABS1510509
Manufacturer/Brand:	Panasonic
Product description	SWITCH SNAP ACTION SPDT 2A 125V
Datasheets:	ABS1510509.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	48754 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 48754 pcs

Reference Price (In US Dollars)

100 pcs: $0.746

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.746

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of ABS1510509

Part Number	ABS1510509	Manufacturer	Panasonic
Description	SWITCH SNAP ACTION SPDT 2A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	48754 pcs	Data sheet	ABS1510509.pdf
Voltage Rating - DC	30V	Voltage Rating - AC	125V
Termination Style	PC Pin	Switch Function	On-Mom
Series	ABS	Release Force	20gf
Pretravel	0.024" (0.6mm)	Packaging	Bulk
Overtravel	0.015" (0.4mm)	Other Names	255-2031 ABS1510509-ND
Operating Temperature	-40°C ~ 85°C	Operating Position	0.330" (8.4mm)
Operating Force	150gf	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	5,000,000 Cycles
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	IP50 - Dust Protected
Features	-	Electrical Life	50,000 Cycles
Differential Travel	0.004" (0.1mm)	Current Rating	2A (AC/DC)
Circuit	SPDT	Actuator Type	Round (Pin Plunger)
