ABS1510403

Panasonic

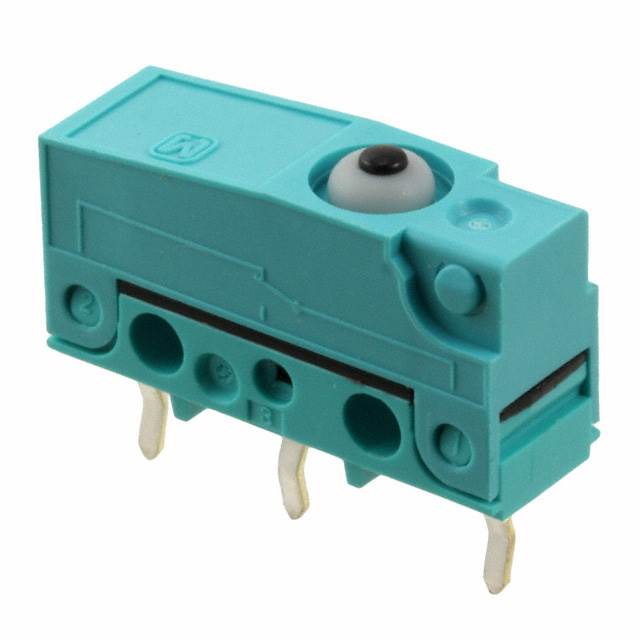

Image may be representation. See specifications for product details.

Product Overview

Part Number:	ABS1510403
Manufacturer/Brand:	Panasonic
Product description	SWITCH SNAP ACTION SPDT 2A 125V
Datasheets:	ABS1510403.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	32163 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 32163 pcs

Reference Price (In US Dollars)

1 pcs: $1.015

10 pcs: $0.936

25 pcs: $0.878

50 pcs: $0.858

100 pcs: $0.683

250 pcs: $0.644

500 pcs: $0.605

1000 pcs: $0.566

5000 pcs: $0.527

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.015

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of ABS1510403

Part Number	ABS1510403	Manufacturer	Panasonic
Description	SWITCH SNAP ACTION SPDT 2A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	32163 pcs	Data sheet	ABS1510403.pdf
Voltage Rating - DC	30V	Voltage Rating - AC	125V
Termination Style	PC Pin	Switch Function	On-Mom
Series	ABS	Release Force	15gf
Pretravel	0.024" (0.6mm)	Packaging	Bulk
Overtravel	0.015" (0.4mm)	Other Names	255-5826 ABS1510403-ND
Operating Temperature	-40°C ~ 85°C	Operating Position	0.330" (8.4mm)
Operating Force	100gf	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	5,000,000 Cycles
Manufacturer Standard Lead Time	12 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	IP50 - Dust Protected	Features	-
Electrical Life	50,000 Cycles	Differential Travel	0.004" (0.1mm)
Current Rating	2A (AC/DC)	Circuit	SPDT
Actuator Type	Round (Pin Plunger)
