Orion Fans

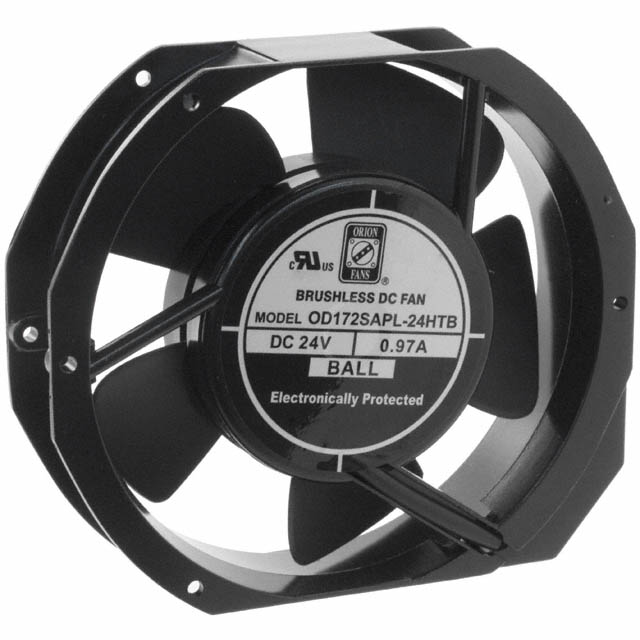

| Part Number | OD172SAPL-24HTB | Manufacturer | Orion Fans |
|---|---|---|---|
| Description | FAN AXIAL 172X38.5MM 24VDC TERM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 1208 pcs | Data sheet | 1.OD172SAPL-24HTB.pdf2.OD172SAPL-24HTB.pdf3.OD172SAPL-24HTB.pdf4.OD172SAPL-24HTB.pdf |
| Width | 38.50mm | Weight | - |
| Voltage Range | 15 ~ 28VDC | Voltage - Rated | 24VDC |
| Termination | 2 Terminals | Static Pressure | 0.730 in H2O (181.8 Pa) |
| Size / Dimension | Rectangular/Rounded - 172mm L x 150mm H | Series | OD172SAPL |
| RPM | 4000 RPM | Other Names | 1053-1185 OD172SAPL-24HTBX OD172SAPL24HTB |
| Operating Temperature | -4 ~ 176°F (-20 ~ 80°C) | Noise | 55.0 dB |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Frame | Aluminum |
| Material - Blade | Polybutylene Terephthalate (PBT), Fiberglass Reinforced | Manufacturer Standard Lead Time | 17 Weeks |
| Lifetime @ Temp. | 60000 Hrs @ 45°C | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Ingress Protection | - | Features | - |
| Fan Type | Tubeaxial | Current Rating | 0.970A |
| Bearing Type | Ball | Approvals | cURus, TUV |
| Air Flow | 225.0 CFM (6.30m³/min) |
