Orion Fans

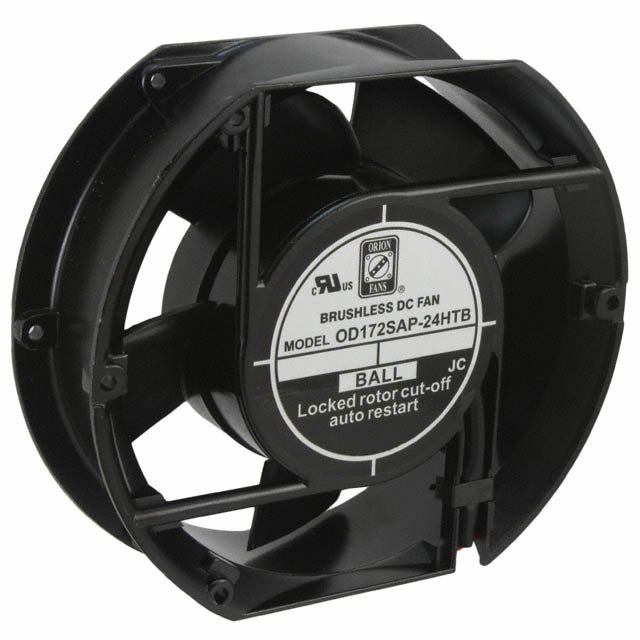

| Part Number | OD172SAP-24HTB | Manufacturer | Orion Fans |
|---|---|---|---|
| Description | FAN AXIAL 172X50.8MM 24VDC TERM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 1256 pcs | Data sheet | 1.OD172SAP-24HTB.pdf2.OD172SAP-24HTB.pdf3.OD172SAP-24HTB.pdf |
| Width | 50.80mm | Weight | - |
| Voltage Range | 15 ~ 28VDC | Voltage - Rated | 24VDC |
| Termination | 2 Terminals | Static Pressure | 0.790 in H2O (196.8 Pa) |
| Size / Dimension | Rectangular/Rounded - 172mm L x 150mm H | Series | OD172SAP |
| RPM | 3300 RPM | Other Names | 1053-1180 OD172SAP-24HTBX OD172SAP24HTB |
| Operating Temperature | -4 ~ 167°F (-20 ~ 75°C) | Noise | 52.0 dB |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Frame | Aluminum |
| Material - Blade | Polybutylene Terephthalate (PBT), Fiberglass Reinforced | Manufacturer Standard Lead Time | 17 Weeks |
| Lifetime @ Temp. | 40000 Hrs @ 60°C | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Ingress Protection | - | Features | - |
| Fan Type | Tubeaxial | Current Rating | 0.970A |
| Bearing Type | Ball | Approvals | cURus, TUV |
| Air Flow | 235.0 CFM (6.58m³/min) |
