On-Shore Technology, Inc.

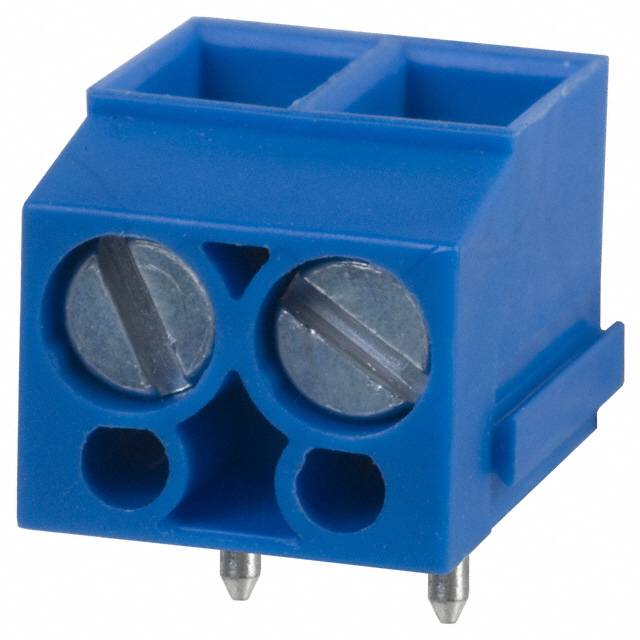

| Part Number | ED105/2DS | Manufacturer | On-Shore Technology, Inc. |
|---|---|---|---|
| Description | TERMINAL BLOCK 5MM HORZ 2POS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 166506 pcs | Data sheet | ED105/2DS.pdf |
| Wire Termination | Screw - Leaf Spring, Wire Guard | Wire Gauge | 14-22 AWG |
| Voltage | 300V | Torque - Screw | 0.5 Nm (4.4 Lb-In) |
| Series | ED105/DS | Screw Thread | M3 |
| Screw Material - Plating | - | Positions Per Level | 2 |
| Pitch | 0.197" (5.00mm) | Packaging | Bulk |
| Other Names | ED105-2DS ED1052DS ED1603 |
Operating Temperature | -30°C ~ 105°C |
| Number of Levels | 1 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Orientation | Vertical with Board |
| Manufacturer Standard Lead Time | 12 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Housing Material | Polyamide (PA), Nylon | Features | Interlocking (Side) |
| Detailed Description | 2 Position Wire to Board Terminal Block Vertical with Board 0.197" (5.00mm) Through Hole | Current | 15A |
| Contact Material - Plating | Brass | Color | Blue |
| Clamp Material - Plating | Steel, Stainless |
