ED104/8DS

On-Shore Technology, Inc.

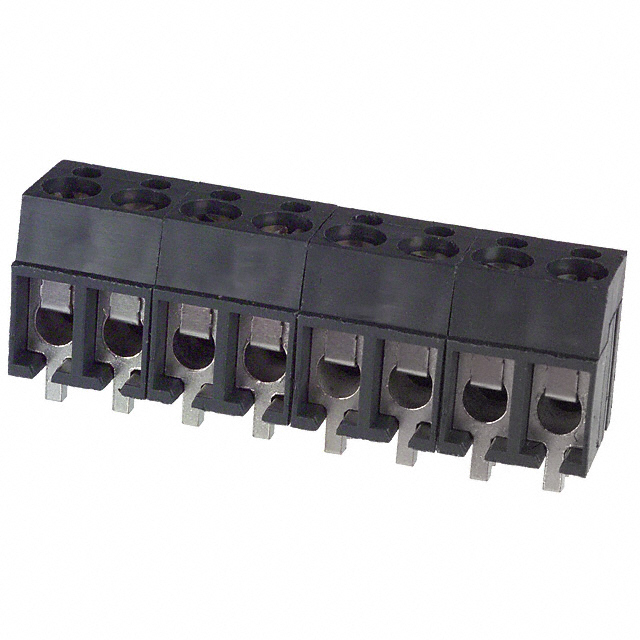

Image may be representation. See specifications for product details.

Product Overview

Part Number:	ED104/8DS
Manufacturer/Brand:	On-Shore Technology, Inc.
Product description	TERMINAL BLOCK 5MM VERT 8POS
Datasheets:	ED104/8DS.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	23282 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 23282 pcs

Reference Price (In US Dollars)

1 pcs: $1.582

10 pcs: $1.205

25 pcs: $1.128

50 pcs: $1.003

100 pcs: $0.981

250 pcs: $0.905

500 pcs: $0.818

1000 pcs: $0.725

5000 pcs: $0.681

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.582

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of ED104/8DS

Part Number	ED104/8DS	Manufacturer	On-Shore Technology, Inc.
Description	TERMINAL BLOCK 5MM VERT 8POS	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	23282 pcs	Data sheet	ED104/8DS.pdf
Wire Termination	Screw - Leaf Spring, Wire Guard	Wire Gauge	14-22 AWG
Voltage	300V	Torque - Screw	0.8 Nm (7.1 Lb-In)
Series	ED104/DS	Screw Thread	M3
Screw Material - Plating	-	Positions Per Level	8
Pitch	0.197" (5.00mm)	Packaging	Bulk
Other Names	ED1048DS ED1562	Operating Temperature	-30°C ~ 105°C
Number of Levels	1	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mating Orientation	Horizontal with Board
Manufacturer Standard Lead Time	12 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Housing Material	Polyamide (PA), Nylon	Features	-
Detailed Description	8 Position Wire to Board Terminal Block Horizontal with Board 0.197" (5.00mm) Through Hole	Current	15A
Contact Material - Plating	Brass	Color	Gray
Clamp Material - Plating	Steel, Stainless
