Omron

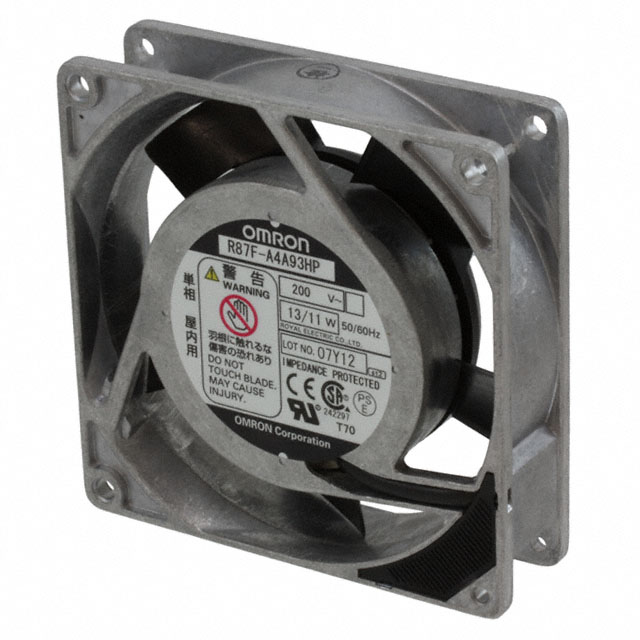

| Part Number | R87F-A4A93HP | Manufacturer | Omron |
|---|---|---|---|
| Description | FAN AXIAL 92X25MM 200VAC TERM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 1276 pcs | Data sheet | R87F-A4A93HP.pdf |
| Width | 25.00mm | Weight | 0.661 lb (299.82g) |
| Voltage Range | - | Voltage - Rated | 200VAC |
| Termination | 2 Terminals | Static Pressure | 0.275 in H2O (68.6 Pa) |
| Size / Dimension | Square - 92mm L x 92mm H | Series | R87F |
| RPM | 3050 RPM | Power (Watts) | 11.00W |
| Other Names | R87F-A4A93HP-ND R87FA4A93HP Z3562 |
Operating Temperature | -22 ~ 158°F (-30 ~ 70°C) |
| Noise | 36.0 dB | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material - Frame | Aluminum | Material - Blade | Polycarbonate (PC) |
| Manufacturer Standard Lead Time | 10 Weeks | Lifetime @ Temp. | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Features | - | Fan Type | Tubeaxial |
| Current Rating | 0.060A | Bearing Type | Ball |
| Approvals | CSA, UL | Air Flow | 35.7 CFM (1.00m³/min) |
