Omron
| Part Number | R87F-A4A13HP | Manufacturer | Omron |
|---|---|---|---|

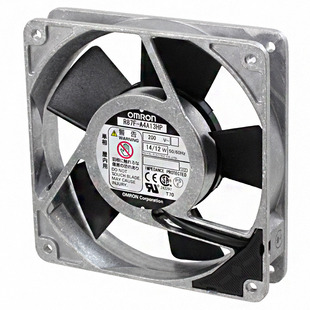

| Description | FAN AXIAL 120X25MM 200VAC TERM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 1210 pcs | Data sheet | R87F-A4A13HP.pdf |
| Width | 25.00mm | Weight | 0.772 lb (350.17g) |
| Voltage Range | - | Voltage - Rated | 200VAC |
| Termination | 2 Terminals | Static Pressure | 0.177 in H2O (44.1 Pa) |
| Size / Dimension | Square - 120mm L x 120mm H | Series | R87F |
| RPM | 2400 RPM | Power (Watts) | 14.00W |
| Other Names | R87F-A4A13HP-ND R87FA4A13HP Z3715 |
Operating Temperature | -22 ~ 158°F (-30 ~ 70°C) |
| Noise | 39.0 dB | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material - Frame | Aluminum | Material - Blade | Polycarbonate (PC) |
| Manufacturer Standard Lead Time | 13 Weeks | Lifetime @ Temp. | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Features | - | Fan Type | Tubeaxial |
| Current Rating | 0.078A | Bearing Type | Ball |
| Approvals | CSA, UL | Air Flow | 78.5 CFM (2.20m³/min) |
