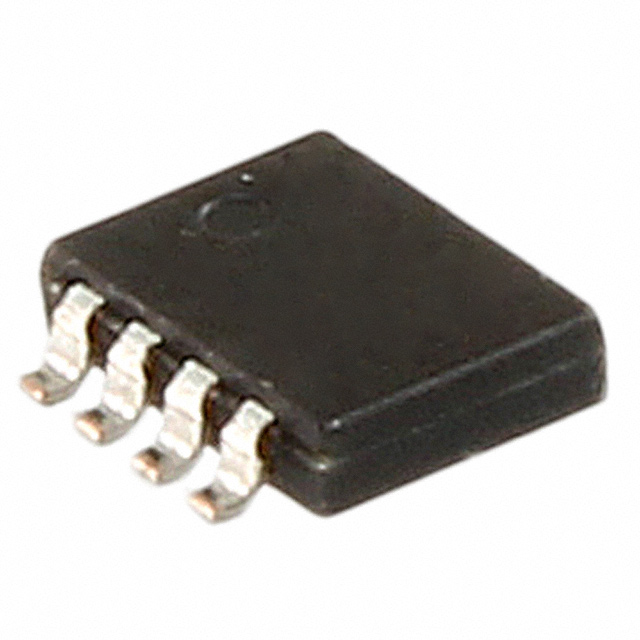

Nexperia USA Inc.
| Part Number | PSMN6R5-30MLDX | Manufacturer | Nexperia USA Inc. |
|---|---|---|---|
| Description | MOSFET N-CH 30V MLFP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 133738 pcs | Data sheet | PSMN6R5-30MLDX.pdf |
| Voltage - Test | 817pF @ 15V | Voltage - Breakdown | LFPAK33 |
| Vgs(th) (Max) @ Id | 6.5 mOhm @ 15A, 10V | Vgs (Max) | 4.5V, 10V |
| Technology | MOSFET (Metal Oxide) | Series | - |
| RoHS Status | Digi-Reel® | Rds On (Max) @ Id, Vgs | 65A (Tc) |
| Polarization | SOT-1210, 8-LFPAK33 (5-Lead) | Other Names | 1727-2220-6 568-12474-6 568-12474-6-ND |
| Operating Temperature | -55°C ~ 175°C (TJ) | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 20 Weeks |
| Manufacturer Part Number | PSMN6R5-30MLDX | Input Capacitance (Ciss) (Max) @ Vds | 13.6nC @ 10V |
| IGBT Type | ±20V | Gate Charge (Qg) (Max) @ Vgs | 2.2V @ 1mA |
| FET Feature | N-Channel | Expanded Description | N-Channel 30V 65A (Tc) 51W (Tc) Surface Mount LFPAK33 |
| Drain to Source Voltage (Vdss) | - | Description | MOSFET N-CH 30V MLFP |
| Current - Continuous Drain (Id) @ 25°C | 30V | Capacitance Ratio | 51W (Tc) |
