Nexperia
| Part Number | PSMN6R4-30MLDX | Manufacturer | Nexperia |
|---|---|---|---|
| Description | MOSFET N-CH 30V MLFP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 145263 pcs | Data sheet | PSMN6R4-30MLDX.pdf |
| Vgs(th) (Max) @ Id | 2.2V @ 1mA | Vgs (Max) | ±20V |

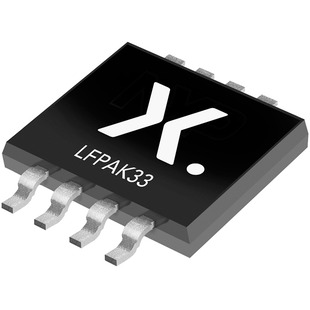

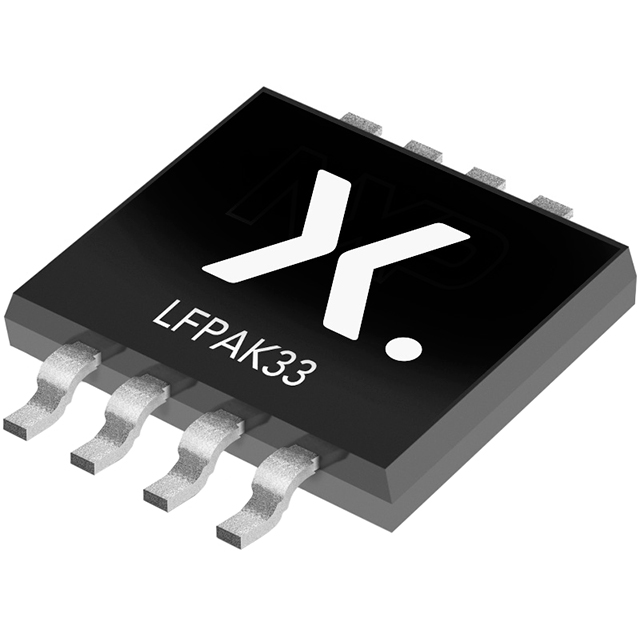

| Technology | MOSFET (Metal Oxide) | Supplier Device Package | LFPAK33 |
| Series | - | Rds On (Max) @ Id, Vgs | 6.3 mOhm @ 15A, 10V |
| Power Dissipation (Max) | 51W (Tc) | Packaging | Cut Tape (CT) |
| Package / Case | SOT-1210, 8-LFPAK33 (5-Lead) | Other Names | 1727-2219-1 568-12473-1 568-12473-1-ND |
| Operating Temperature | -55°C ~ 175°C (TJ) | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Capacitance (Ciss) (Max) @ Vds | 832pF @ 15V | Gate Charge (Qg) (Max) @ Vgs | 13.7nC @ 10V |
| FET Type | N-Channel | FET Feature | - |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V | Drain to Source Voltage (Vdss) | 30V |
| Detailed Description | N-Channel 30V 66A (Tc) 51W (Tc) Surface Mount LFPAK33 | Current - Continuous Drain (Id) @ 25°C | 66A (Tc) |
