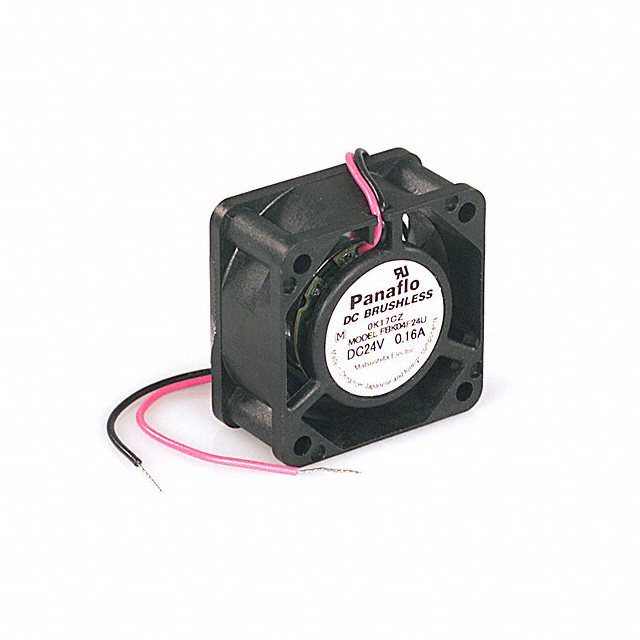

NMB Technologies Corp.
| Part Number | FBK04F24U | Manufacturer | NMB Technologies Corp. |
|---|---|---|---|
| Description | FAN AXIAL 40X20MM 24VDC WIRE | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5304 pcs | Data sheet | 1.FBK04F24U.pdf2.FBK04F24U.pdf3.FBK04F24U.pdf |
| Width | 20.00mm | Weight | 0.088 lb (39.92g) |
| Voltage Range | 14 ~ 27.6VDC | Voltage - Rated | 24VDC |
| Termination | 2 Wire Leads | Static Pressure | 0.472 in H2O (117.6 Pa) |
| Size / Dimension | Square - 40mm L x 40mm H | Series | FBK |
| RPM | 9500 RPM | Power (Watts) | 2.40W |
| Other Names | FBK 04F24U FBK-04F24U P9762 |
Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Noise | 42.0 dB(A) | Material - Frame | Plastic |
| Material - Blade | Plastic | Lifetime @ Temp. | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Features | - | Fan Type | Tubeaxial |
| Current Rating | 0.100A | Bearing Type | Ball |
| Approvals | UL | Air Flow | 9.2 CFM (0.258m³/min) |
